Navigator IP is an Access Control system with Software that looks and feels like a website.

You can use a Browser on any device you like to view & control Navigator IP.

Straight out of the box, no software to purchase or license.
Embedded software means you don't have to install it on a PC or laptop or download an App!

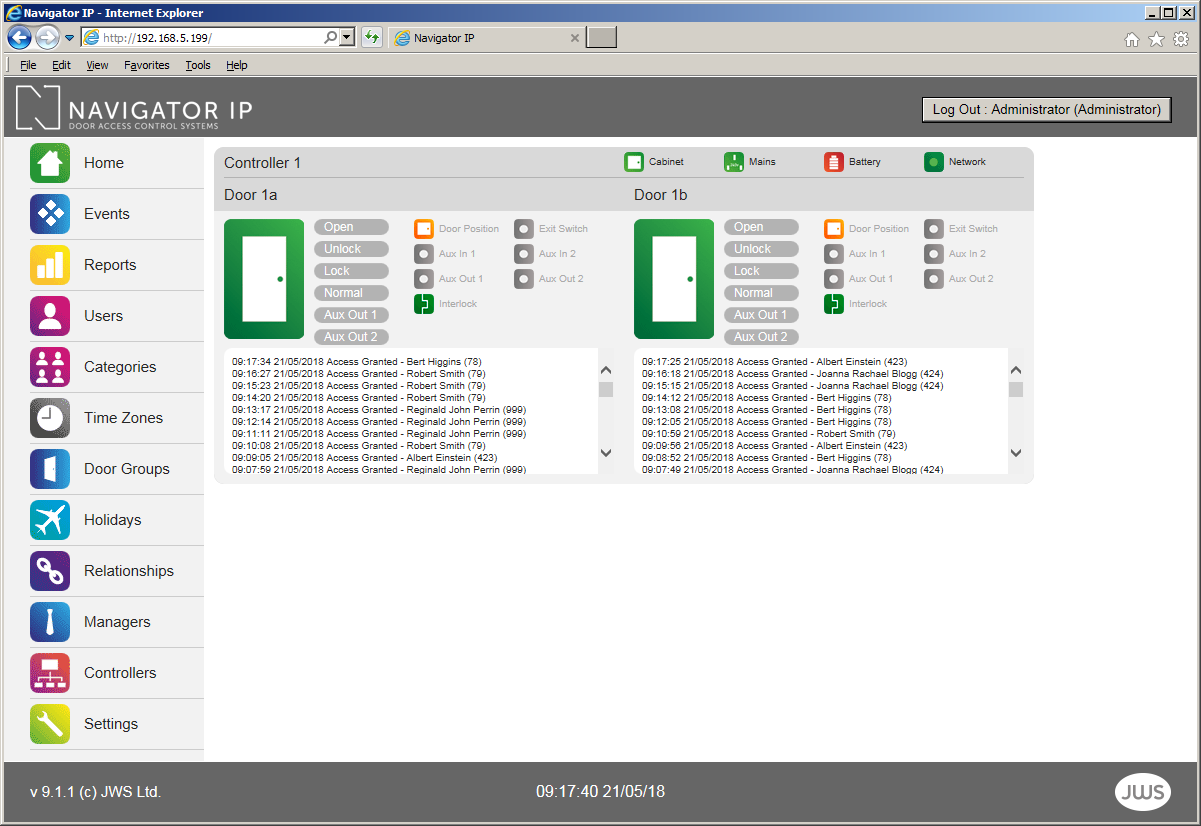

Home
  • Simple and intuitive yet feature rich and powerful
  • Allowing programming, monitoring, and reports of your Access Control
  • Door Control: Open, Unlock Lock & Normal
  • Auxiliary Relay / Output control
  • Live Door Status: Open, Unlocked Locked
  • Live Icon Status: Door Position, Exit Switch, Interlock, Auxiliary Relay
  • Live Events Window per door
  • Live Controller Feedback Cabinet, Mains, Battery & Network

The Homepage also contains:
  • Real Time / System Clock
  • Firmware Version Number
  • Log-out Button ( with current Manager displayed)
  • Menu's / Clickable Buttons to other pages


Log-on
Open your Browser  (we recommend Microsoft Edge or Firefox).
Enter your User Name and Password Contact your Systems Administrator for your password or create one on the Managers Page.
Passwords must be between 10 and 20 characters long and contain at least one number and an Upper Case letter.
Passwords must not contain special characters such as $, %, etc.

Your PC, laptop or tablet must be in the same IP range as the Navigator IP Master Access Control Unit.
By default the Navigator IP Master Access Control Unit is set to 192.168.5.50 - this can be easily changed via the software or the JWS Discovery Utility.



Navigator IP's pages (navigation) summary below:

< Click on the Software menu of the left for further details on each page.


Events
The Events page gives us a system-wide view of current activity on your door and/or network of doors.

It displays the last 250 events and shows the following:
Unique Event ID
Event Date & Time
Event Type ( eg. Access Granted, Door Left Open etc.)
Controller Door Location
The User The Operator (Person logged on to the system, if appropriate)
This page updates automatically every 10 seconds
The above information can be retrieved by using the Reports page and Exported via CSV file to a Spreadsheet of your choice

Reports
Generate Reports Time Date User Door Export Directly to CSV for Excel, Numbers etc

Users
Control the Users by choosing from a number of options
User Name
User Category (Time Zone / Door Group)
PIN
Expiry Date
DDA Assisted Access
Full User Backup and Restore Categories

Categories
Combine Time Zones & Door Groups
Controlling Users by Time & Door parameters
Choose from 64 User Categories
5 Times Zones per User Category
5 Door Groups per User Category
Total Access default User Category for quick programming

Time Zones
Time Zones to control User Access
Set-up Time Zones to control Free Access for doors
Choose from individual or a combination of days
Holiday Option
64 Time Zones

Door Groups
Set-up Door Groups to control User Access by door(s)
Choose from available doors
64 Door Groups

Holidays
Set-up Door Groups for your Users and Access Control System 32 Holiday Settings

Relationships
Powerful Cause-Effect software e.g.
Send me an email when a Break Glass is pressed or a Door is left open!
Cause Events per Controller, Door or User Effect Events (outcome) for Door(s) or User(s) Email feature

Managers
Manage who has access to Navigator IP Software and who see's what!

Controllers
A multitude of options to set-up the Navigator IP hardware

Settings
A multitude of options to set-up the Navigator IP software, systems settings, email etc. and backup & restore.
