Navigator IP Hardware

Navigator IP Range of Hardware, Readers, Cards & Fobs

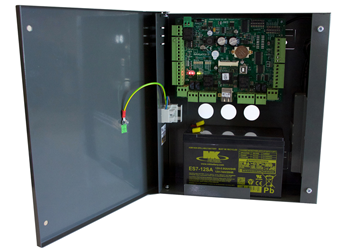

Navigator IP Master, LAN, and RS485 Access Control Units
(each unit controls one or two doors)



Powered Coated Steel Cabinet 280mm (h) x 230 mm (w) x 85mm (Inc. mounting feet).
Allows fitment of 12vDC 7.0Ahr Sealed Lead Acid battery.
Complete with “lazy fold” feet
Easy swap / serviceable Power Supply
Multiple cut-outs for cable entry




Meets the essential requirements of the following European Directives:
Low Voltage 2006/95/EC; EMC 2004/108/ECWEEE2002/96/EC;
RoHs 2002/95/EC

Navigator IP Power Supply
Protection Over Voltage, Short circuit & Over Current
Safety & Emissions: CB, UL, Cul, FCC, GS, CE, PSE, BSMI, CCC EMIConducon &
Radiaon:
Compliance to EN55022 Class B Harmonic current:
Compliance to EN61000-3-2, 3 EMS Immunity:
Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11
Topology: Switching Flyback Efficiency: Energy Star level V, Erp Stage 2, gems & NRA certified, CEC V





Instructions PDF

Navigator IP Technical data sheet

Go to Navigator IP Page






Navigator IP Card & Fob Readers
(125KHz or Mifare available)


A wide range of Navigator IP compatible card and fob readers.


Go to Navigator IP Shop


Navigator IP Cards & Fobs
(125KHz or Mifare available)


A wide range of Navigator IP compatible card and fobs.
ID Card printing & Photo Bureau available.


Go to Navigator IP Shop
