Navigator IP Installation

Discovery Utility

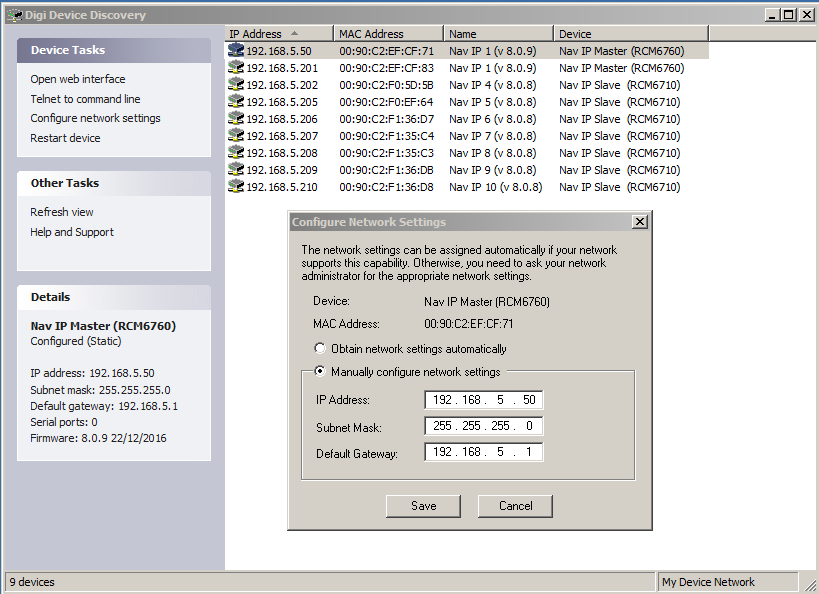

Navigator IP Discovery Utility allows you to view your Navigator IP Master and IP LAN slave Access Control Units.

If you have a DHCP server or DHCP enabled router Navigator IP will pick up its own IP address. If not the Master unit will default to 192.168.5.45, you can then temporarily set your laptop or PC to this IP range (e.g. 192.168.5.1) and the find Master unit using the Discovery Utility.

You can then use the Navigator IP Discovery Utility to view, edit or set to a fixed IP address.

Using Chrome (Navigator IP specified browser) you can then access Navigator IPs User Interface.

With Discovery Utility you can:

• View and change IP addresses
• Set Static IP address or DHCP
• Set Subnet Masks
• Set Default Gateway address
• View Firmware Versions
• View MAC addresses
