Complete Toilet Locking System with Opener, Two Safety Sensors and Finger-guard

Part Number:  DPTSKIT+COMPLETE 2
£1,262.00 ex 20% VAT (£1,514.40 inc. VAT)
9 in stock, immediate despatch

9 in stock, immediate despatch

-
+

Automatic Toilet Locking System with Opener, Two Safety Sensor, and Finger-guard

Disabled Persons Toilet Locking System for Automatic Door Operators and designed for DDA compliance. It can be easily integrated into a toilet with supplied Automatic Door Opener

Important - please read:

This operator is for domestic, office, disabled access and low traffic doors only and not medium or high traffic doors.
It must be operated by
push buttons* only and must not be pushed or pulled manually - this will invalidate the Products Warranty
It is not suitable for Outward Opening external doors
It is not suitable for Fire Rated Doors

* handheld fobs or activation sensors are also suitable


Operated by two JWS Touch Sensors it controls Entry by Opening and Locking the door at the appropriate times interfacing with both the Automatic Door operator and a locking device (maglock).

How it works:
1 - Entry. Touch the entry sensor. The door opener will activate to provide access.

2 - Lock. Touch the Red Sensor to lock the door. To confirm the door is locked, the indicators on both Sensors will flash showing the toilet is engaged and inhibiting the entry sensor.

3 - Exit. Touch the Green Sensor and the indicator stops flashing. The door will be unlocked and the door opener activated. The entry sensor stops flashing and becomes operable once again to provide access.

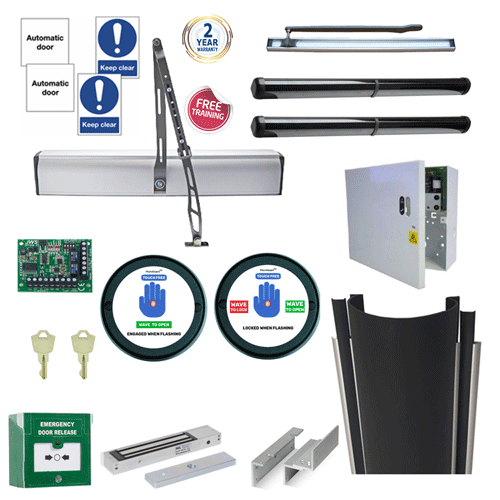

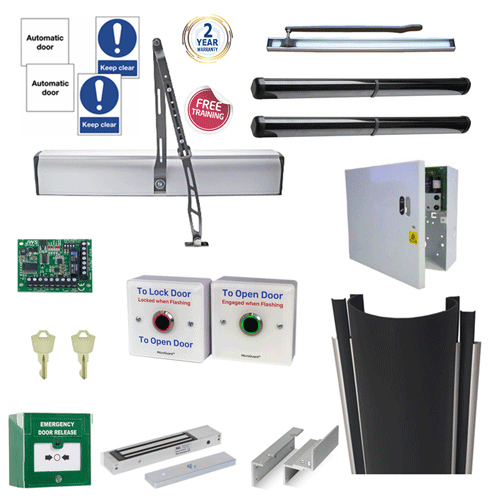

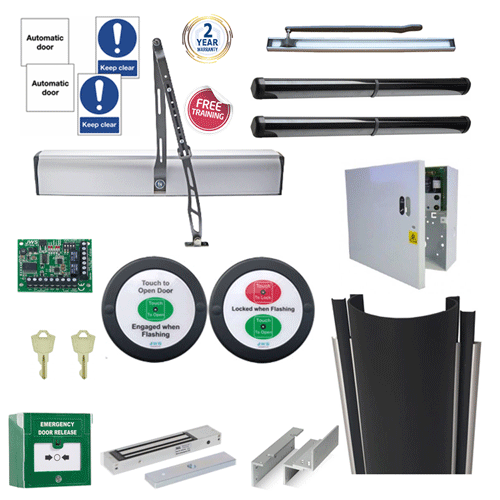

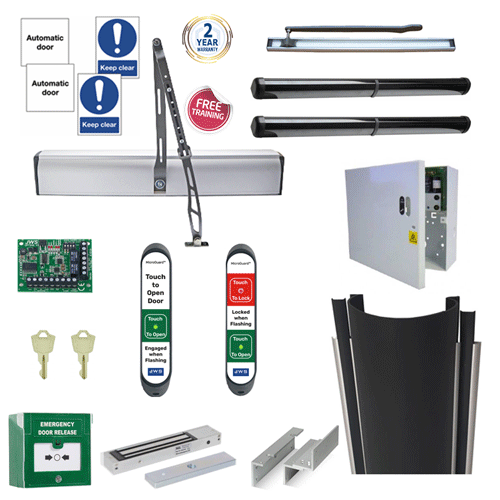

Whats in the kit?
DWPS102U Digiway Automatic Door Opener with Inward & Outward Opening Arms
Two x SS5 Monitored Safety Sensors 692 mm
LAS Fingerguard
Automatic Door and Keep Clear Signage
DPTS PCB (already fitted in power supply)
12v 1A PSU ( powers DPTS and lock)  Size: 200 x 225 x 75mm
Open (External) Touch Sensors with emergency override key switch (2 keys included) Size: 85 x 145 x 34mm
Lock (Internal) Touch Sensor Size: 85 x 145 x 34mm
Door Contact
Resettable Breakglass with cover and one reset key
User labels
Slimline Maglock
Z and L Bracket Kit

All work undertaken on Automatic Doors must comply with EN16005
JWS recommend using a suitably qualified company/contractor

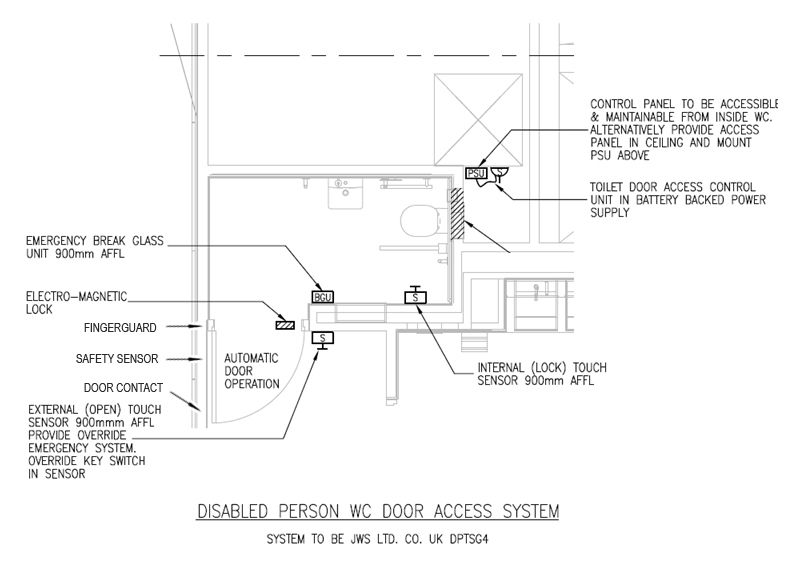

Example Layout below
Please ensure your Risk Assessment complies with the end-users requirements and EN16005 guidelines

Please note: damage to the motor drive circuits of the DWPS102U caused by incorrect use (pushing and pulling of the door while in motion) is not covered under warranty as this is deemed as abuse. If you require an Automatic Door opener for free/manual door use ( that can be pushed or pulled with the need to press a button) please choose the Spring Return opener code: DWSR102U​


DPTS Brochure

Instructions PDF< Click me to view (PDF)


DPTS Wiring

Instructions PDF< Click me to view (PDF)



DWPS102U Manual

Instructions PDF< Click me to view (PDF)


DWPS102U Data Sheet

Instructions PDF< Click me to view (PDF)


DWPS102U Measurements for fitting

Instructions PDF< Click me to view (PDF)


DWPS102U Suitability

Instructions PDF< Click me to view (PDF)


DWPS102U Risk Assement

Instructions PDF< Click me to view (PDF)


For Help, Call 01761 414 700

Need advice on which product to purchase? No problem. Call our friendly sales and support team on 01761 414 700 or send us an email. We're more than happy to discuss your requirements.
