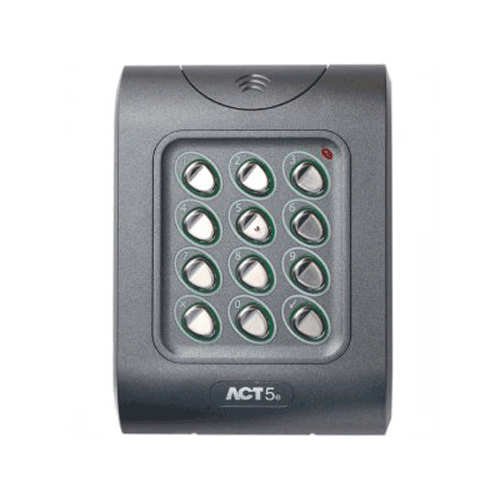

Act 5e Keypad Access Control Act 5

Act 5e Keypad Access Control Act 5
  Zoom
 Act 5e Keypad Access Control Act 5Act 5e Keypad Access Control Act 5

Stylish backlit keypad suitable for both indoor and outdoor use

Part Number:  ACT5E
£42.00 ex 20% VAT (£50.40 inc. VAT)
26 in stock, immediate despatch

26 in stock, immediate despatch

-
+

ACT 5 Digital Keypad

Access Control Keypad with 10 User codes, a high quality cost effective standalone unit with backlight.
Housed in a stylish polycarbonate housing with stainless steel keys, suitable for external use.

Technical Specification
Model: ACT5e
10 User codes
Programming Code
Push to release button input
Tri-colour LED and Buzzer indicators
Door relay timer (5 to 255 seconds)
Incorrect code lockout (20 seconds)
ACT5 Keypads have fully protected / potted electronics

Operating Voltage: 12/24 Volts AC/DC
Current Consumption: 30/120 mA
Weight: 260 grams
Operating Temperature: -10 to +50 C
Dimensions (HxWxD): 110 x 100 x 35mm
Mounting: Surface or Flush
Installation: Indoor or Outdoor (IP65)


How do I install the Act 5 keypad?

Instructions PDF< Click me to get the manual (PDF)

For Help, Call 01761 414 700

Need advice on which product to purchase? No problem. Call our friendly sales and support team on 01761 414 700 or send us an email. We're more than happy to discuss your requirements.

Related Products

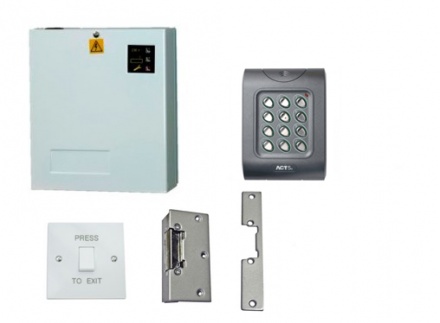

Access Control Kit K1LR: Keypad, Lock Release, Exit Switch & Power Supply

Access Control Kit K1LR: Keypad, Lock Release, Exit Switch & Power Supply

ACT5 Keypad Access control system

£99.00
5 in stock, immediate despatch  5 in stock, immediate despatch

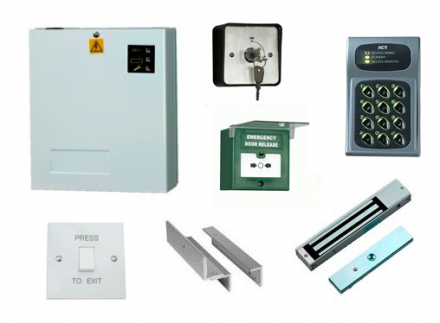

Access Control Kit K3: Keypad, Magnetic Lock, Exit Switch, PSU, Keyswitch, Breakglass

Access Control Kit K3: Keypad, Magnetic Lock, Exit Switch, PSU, Keyswitch, Breakglass

ACT10 Keypad Access control system

£181.00
3 in stock, immediate despatch  3 in stock, immediate despatch

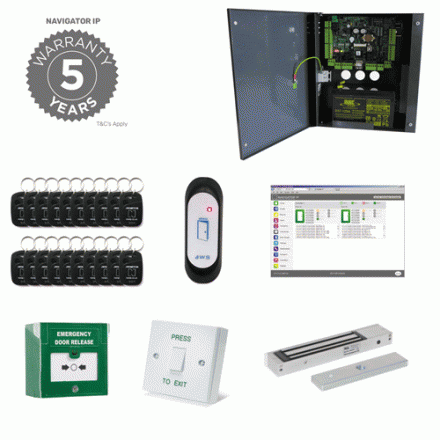

Navigator IP  ''Kit 1'' Complete 1 Door Solution with free software

Navigator IP "Kit 1" Complete 1 Door Solution with free software

Access Control System, Secure MIFARE Reader, 20 Cards or Fobs

£420.00
9 in stock, immediate despatch  9 in stock, immediate despatch

NEW

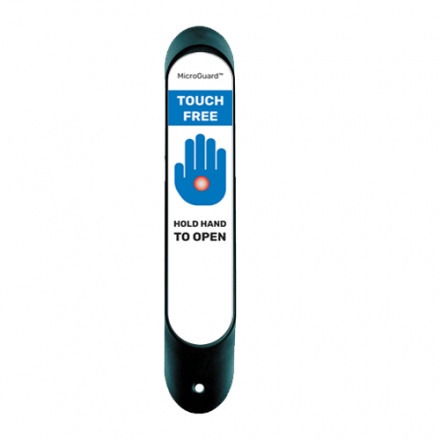

Touch Free Sensor with MicroGuard™ Anti-Microbial Coating
