Disabled Persons Toilet Locking System for Automatic Swing and Sliding Door* Operators and designed for DDA compliance.
*Sliding Door version comes without Magnetic Lock and Brackets and integrates with the Sliders integral locking.
It can be easily integrated into a toilet with an existing Automatic Door Opener or you can purchase an Automatic Door operator from JWS!
Operated by two JWS Touch Sensors it controls Entry by Opening and Locking the door at the appropriate times interfacing with both the Automatic Door operator and a locking device (maglock).

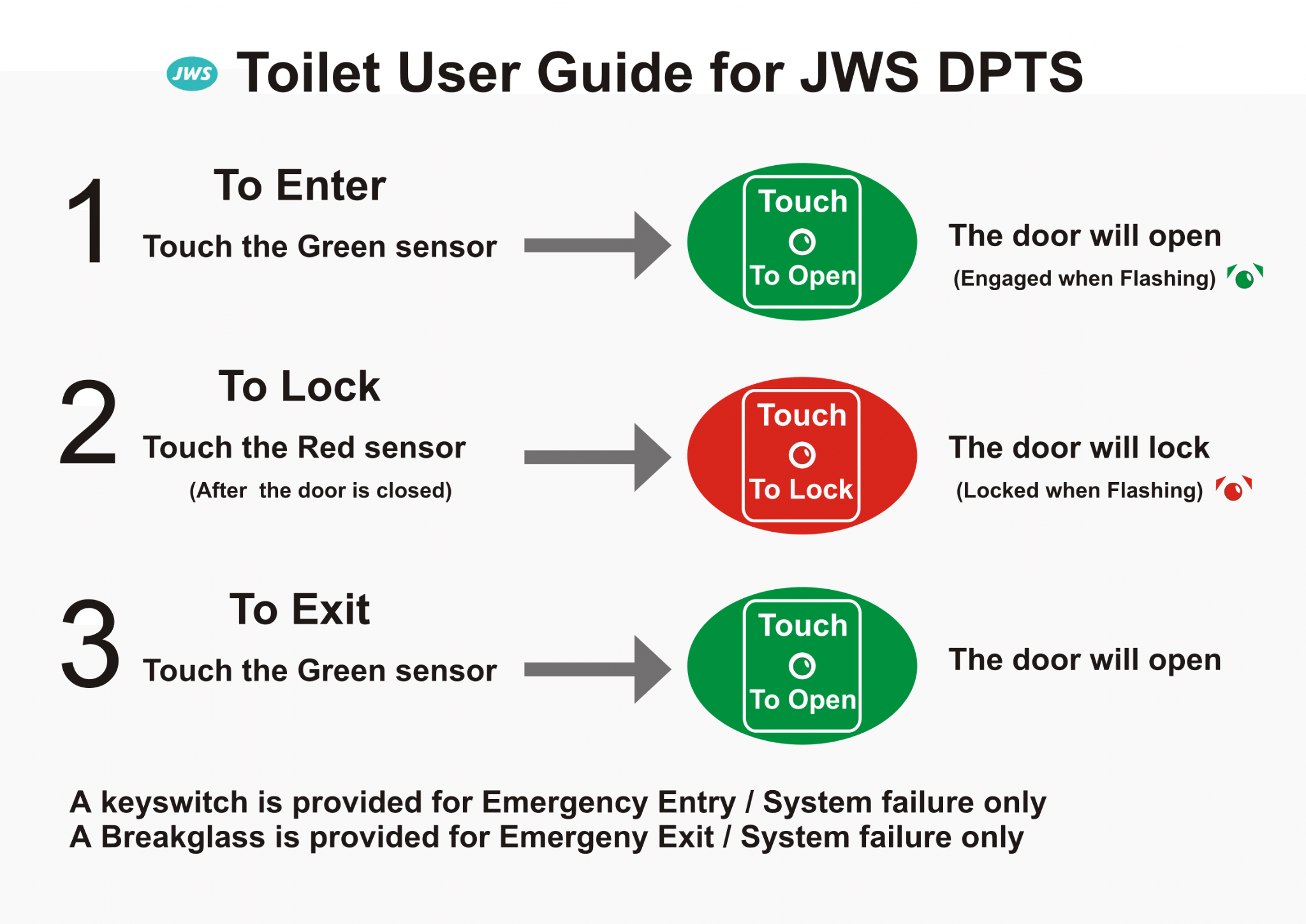

How it works:
1 - Entry. Touch the entry sensor. The door opener will activate to provide access.
2 - Lock. Touch the Red Sensor to lock the door. To confirm the door is locked, the indicators on both Sensors will flash showing the toilet is engaged and inhibiting the entry sensor.
3 - Exit. Touch the Green Sensor and the indicator stops flashing. The door will be unlocked and the door opener activated. The entry sensor stops flashing and becomes operable once again to provide access.
What's in the kit?
Apart from the Automatic Door opener (and associated safety devices), we like to think that this kit comprises everything you need for your toilet door:

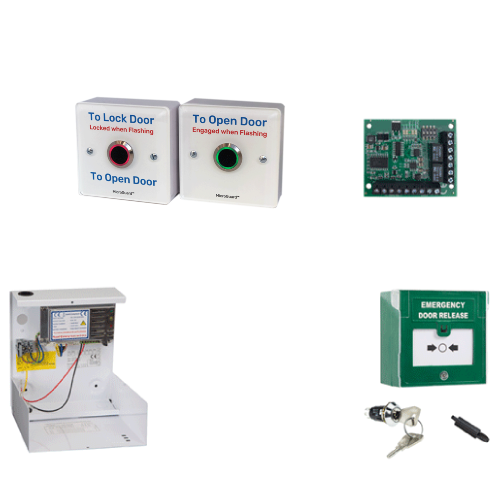

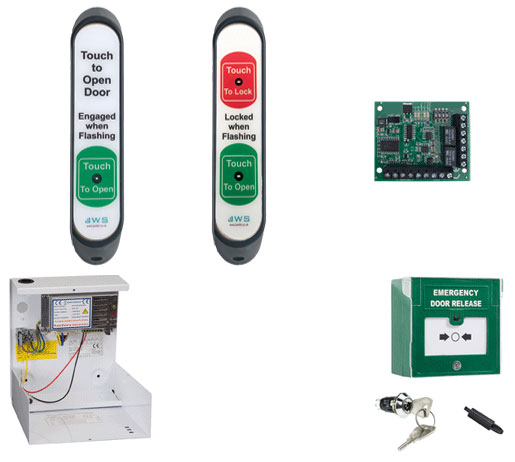

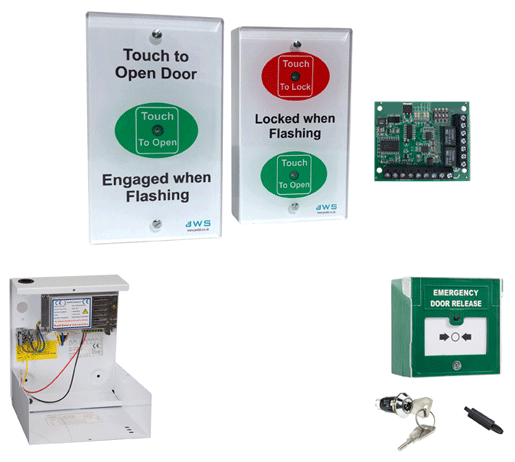

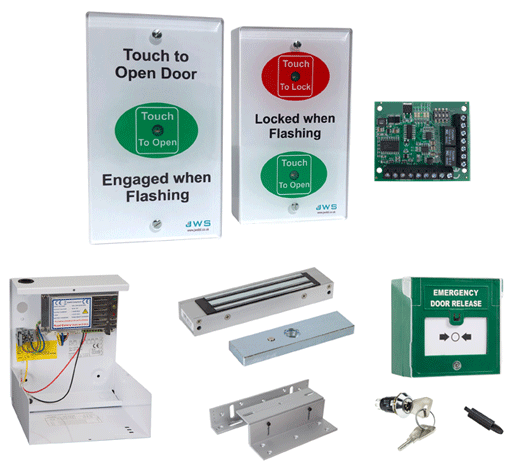

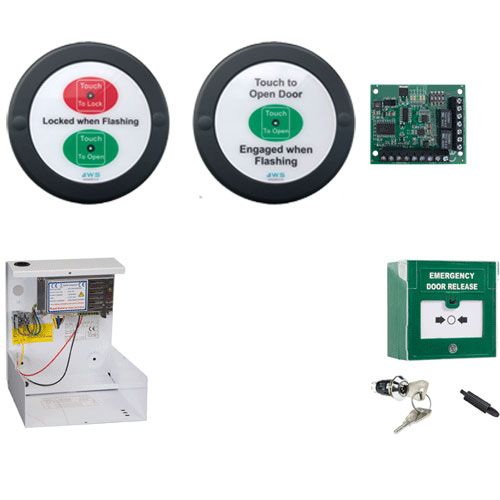

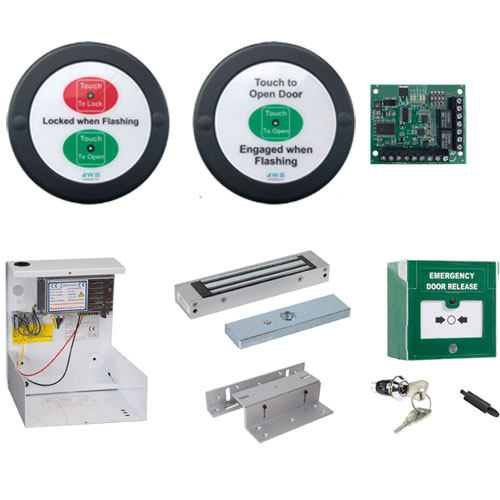

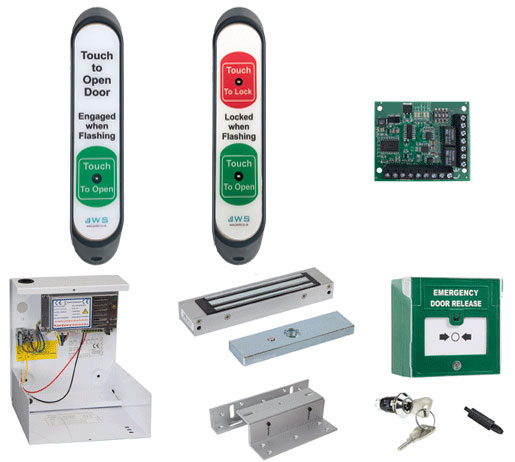

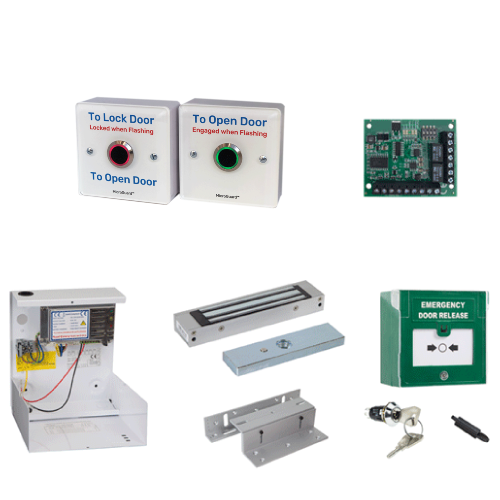

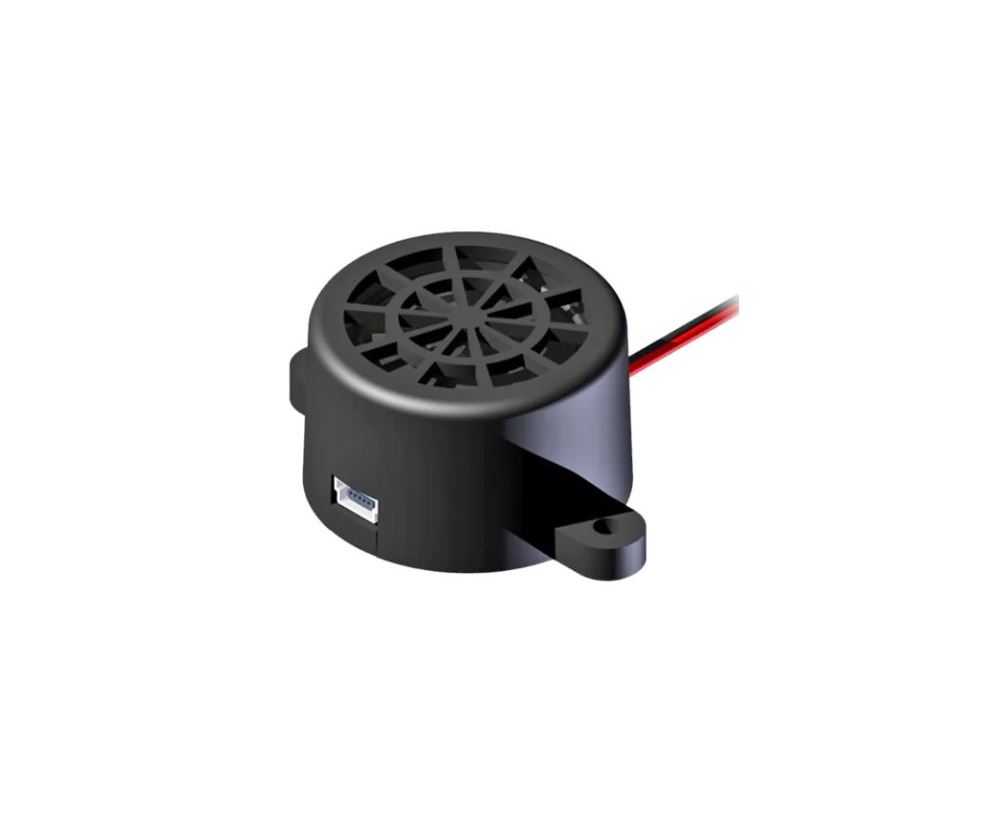

DPTS PCB
12v 1A PSU (powers DPTS & lock) (200 x 225 x 75mm)
Open (External) Touch Sensors with built-in emergency override key switch (2 keys included)
Lock (Internal) Touch Sensor
Resettable Breakglass with cover and one reset key
Slimline Maglock with Integrated Door Status Contact
Z and L Bracket Kit
User labels, Wiring diagram and Customer Guide

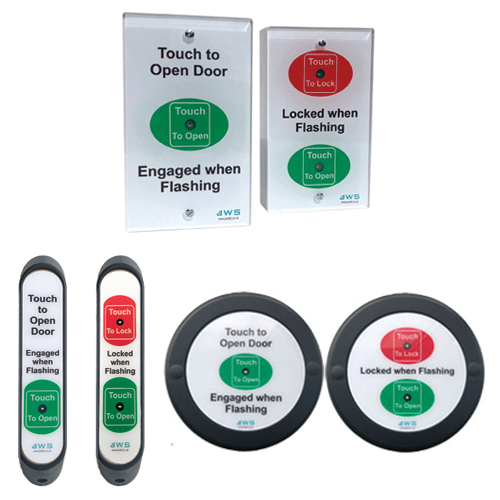

Housing Dimensions (mm).

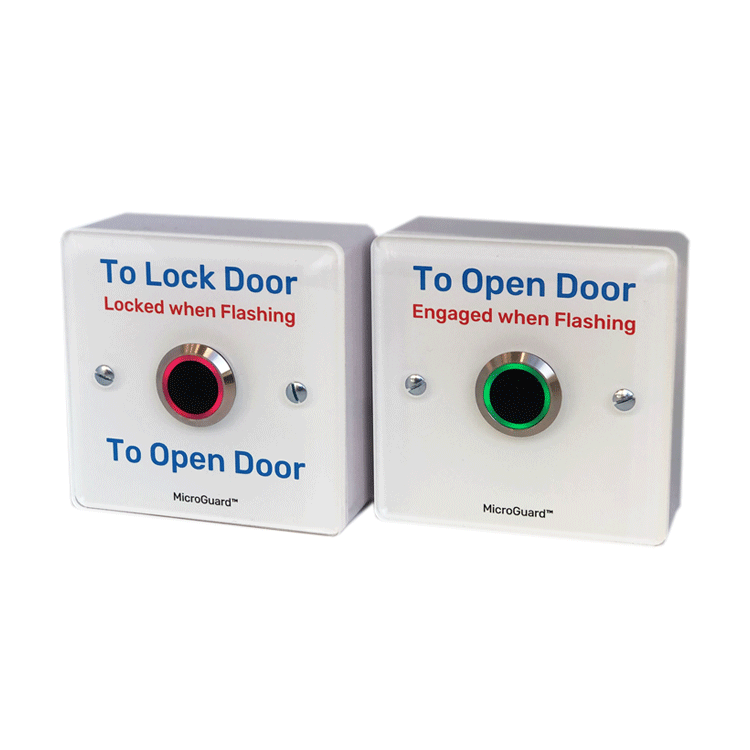

Original "Square": 145(h) x 85(w) x 34(d)
Architrave 225(h) x 40(w) x 49(d)
Round: 166 (dia) x 35 (d)
Single Gang: 88(h) x 88(w) x 5(d) plus 35 mm back box
All work undertaken on Automatic Doors must comply with EN16005. JWS recommend using a suitably qualified company/contractor
Example Layout below
Please ensure your Risk Assessment complies with the end-users requirements and EN16005 guidelines
SAP 4450 Complete WC Entry Kit Internal

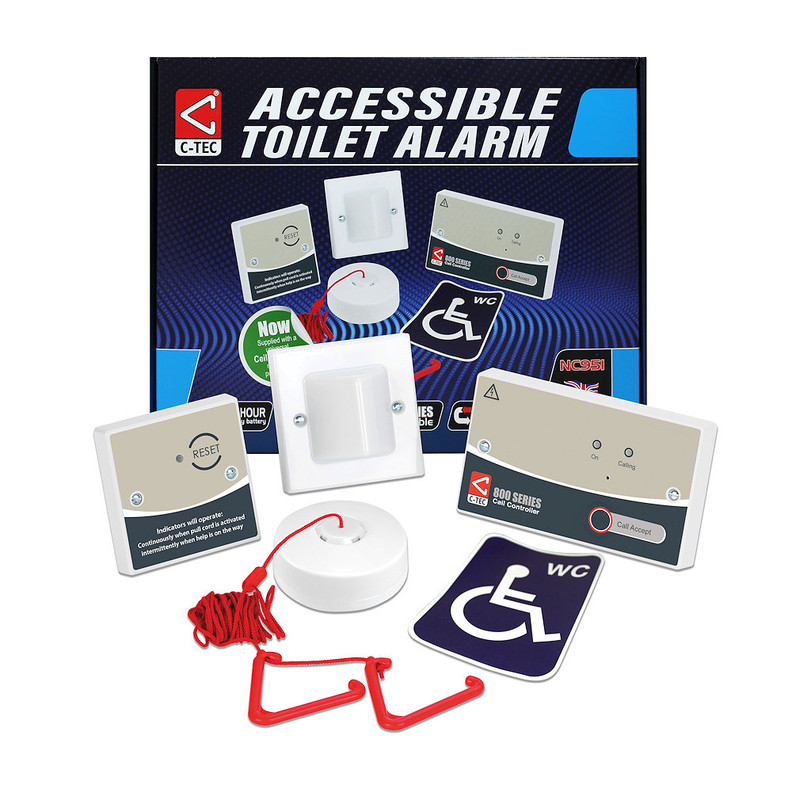

WCKIT - Disabled Toilet Door Kit
