Touch Free Toilet Door Kit - for Automatic Door Operators
  Zoom

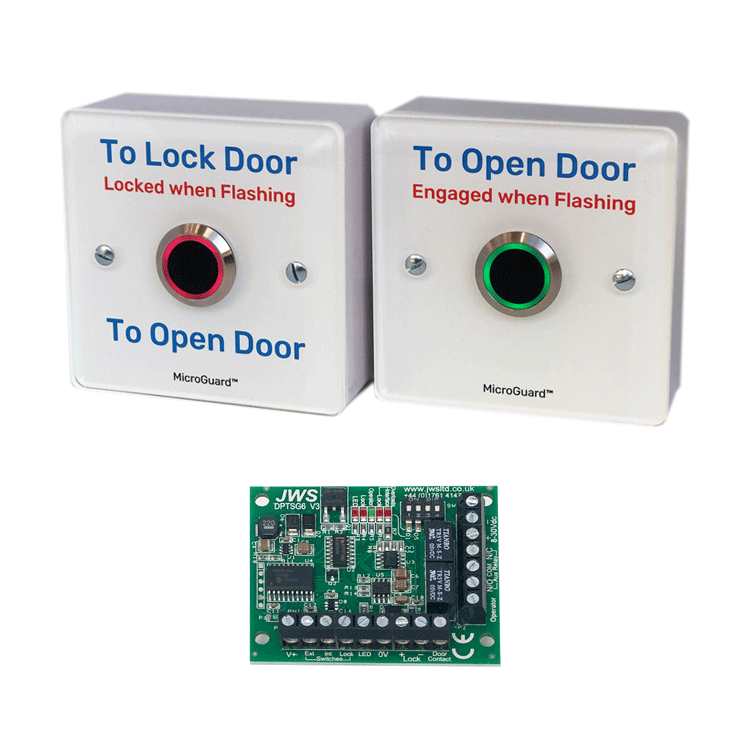

Touch Free Toilet Door Kit - for Automatic Door Operators

MicroGuard™ Anti-Microbial Coated Toilet Locking System

Part Code:  DPTS-SG-IR
£195.00 ex 20% VAT (£234.00 inc. VAT)
11 in stock, immediate despatch

11 in stock, immediate despatch

Same Day Despatch on working days.
Add my Company logo for free
-
+
Optional Extras:
12v DC Door Entry Power Supplies12v DC Door Entry Power Supplies
Slimline Magnetic Door lock Maglocks SingleSlimline Magnetic Door lock Maglocks Single
Yuasa NP7-12 12V 7Ah Sealed Lead Acid Rechargeable BatteryYuasa NP7-12 12V 7Ah Sealed Lead Acid Rechargeable Battery
RGL Green Emergency Break Glass UnitsRGL Green Emergency Break Glass Units
RGL Key Switches - IP54 ratedRGL Key Switches - IP54 rated
NC951 Accessible Disabled Persons Toilet Alarm KitNC951 Accessible Disabled Persons Toilet Alarm Kit

No Touch / Wave  (adjustable from 50 - 200mm)  and MicroGuard™ Anti-Microbial Coated Toilet Locking System for Automatic Door Operators.

“No Touch” Single Gang Hand sensor with scratch resistant, MicroGuard TM antimicrobial super tough 5mm acrylic label. JWS MicroGuard TM contactless sensor range have an activation range from 50 - 200mm. If touched, the entire label is protected by MicroGuard TM additive which kills 99.9% of germs. Designed for DDA compliance.

Easily integrated into a toilet with a new or existing Automatic Door Operator.

Operated by two JWS Touch Free Sensors  it controls Entry by Opening and Locking the door at the appropriate times interfacing with both the Automatic Door operator and a locking device (maglock).

How it works:
1 - Entry. Hold hand near the external sensor. The door opener will activate to provide access.

2 - Lock. Hold hand near the internal sensor to lock the door. To confirm the door is locked, the indicators on both Sensors will flash showing the toilet is engaged and inhibiting the entry sensor.

3 - Exit. Hold hand again near the internal sensor and the indicator stops flashing. The door will be unlocked and the door opener activated. The entry sensor stops flashing and becomes operable once again to provide access.

Recommendations for complete system?
Apart from the Automatic Door opener (and associated safety devices), we like to think that this kit comprises everything you need for your toilet door:

DPTS PCB (already fitted in power supply)
12v 1A PSU ( powers DPTS and lock)  Size: 200 x 225 x 75mm
UK Single Gang (External) Touch Free Sensors
UK Single Gang Lock (Internal) Touch Free Sensor  - IP65
(The Touch Free sensors can be flush mounted in a back box with a minimum depth of 35mm)
Resettable Breakglass with cover and one reset key
Emergency override key switch (2 keys included) - IP65
User labels
Slimline Maglock (unmonitored with Door Status)
Z and L Bracket Kit

All work undertaken on Automatic Doors must comply with EN16005
JWS recommend using a suitably qualified company/contractor


Example Layout below
Please ensure your Risk Assessment complies with the end-users requirements and EN16005 guidelines

SAP 4450 Complete WC Entry Kit Internal
WCKIT - Disabled Toilet Door Kit


DPTS Brochure

Instructions PDF

DPTS Wiring

Instructions PDF

How to use
