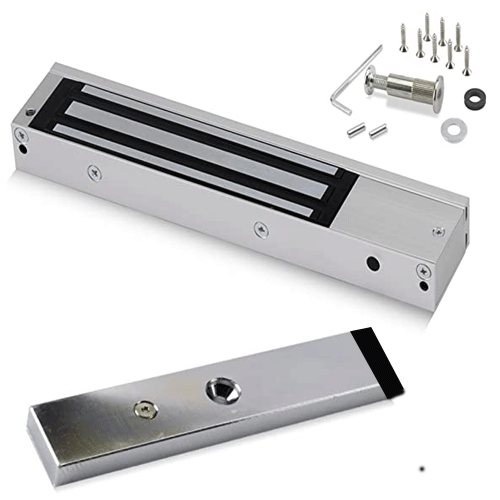

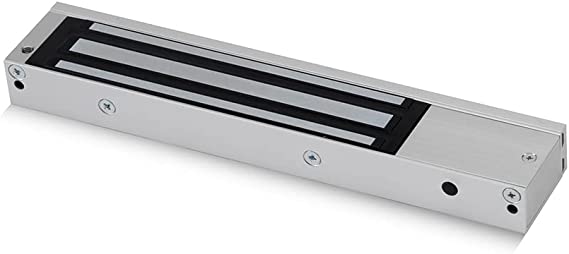

Magnetic door lock Maglock Slimline

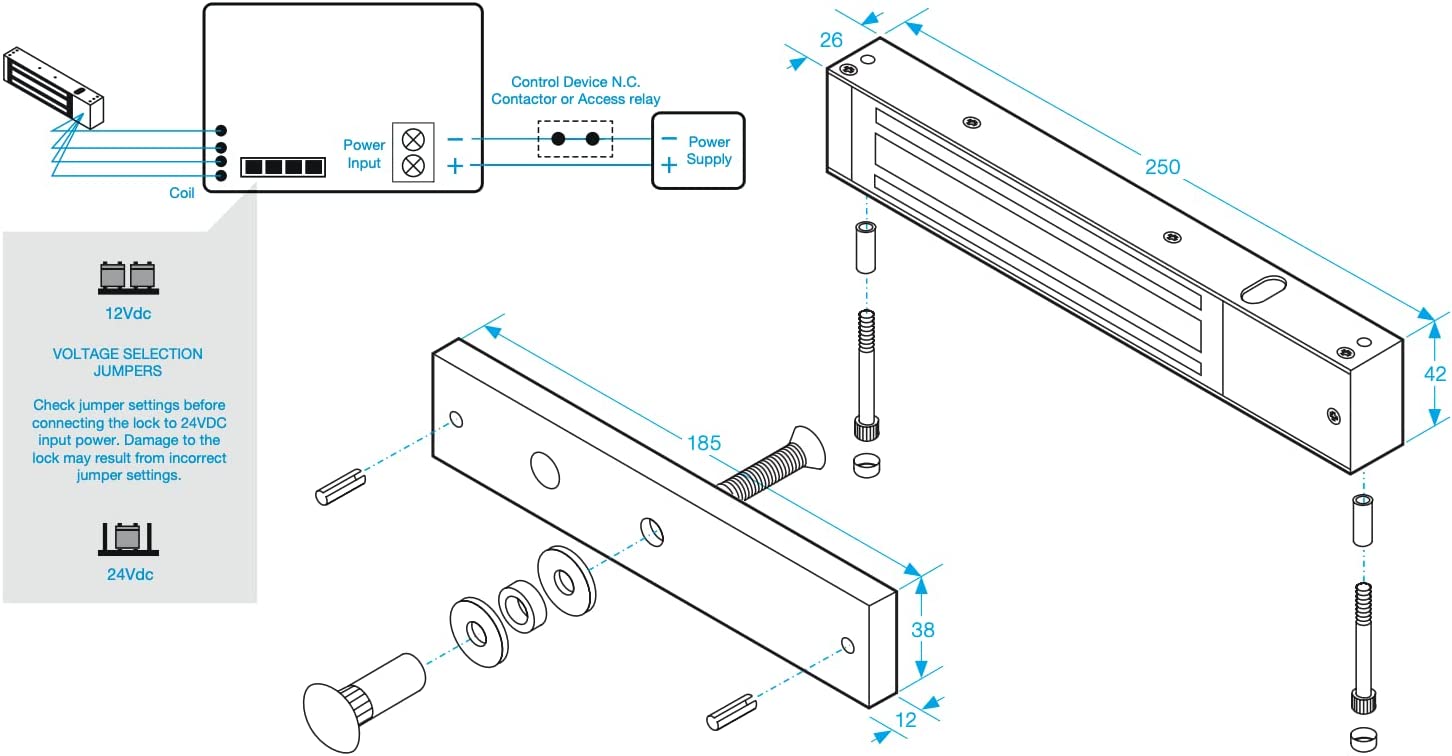

Size (mm): 250 (l) x 42 (w) x 26 (d)
Cost effective maglock for low security & internal doors with 280Kg holding force
Monitored (have output (relay) when door is locked)
Unmonitored with Door Status output (have output (relay) when door is closed)
Monitored with Door Status output
Do I need extra brackets for my installation?
Please see image above for details.
1. Standard installation - no extra bracket required
2. Inward opening / swinging door - Z & L Bracket required
3. Narrow door frame - L Bracket required
4. Glass door leaf - U bracket required
Electro Magnet Slimline Magnet 81811 C3S11
Operating Voltage: 12/24VDC (set by jumper on lock)
Current Consumption: 250mA @ 24VDC or 500mA @ 12VDC
Holding Force 600 llb / 300kg approx.
JWS Slimline Maglock Guide
