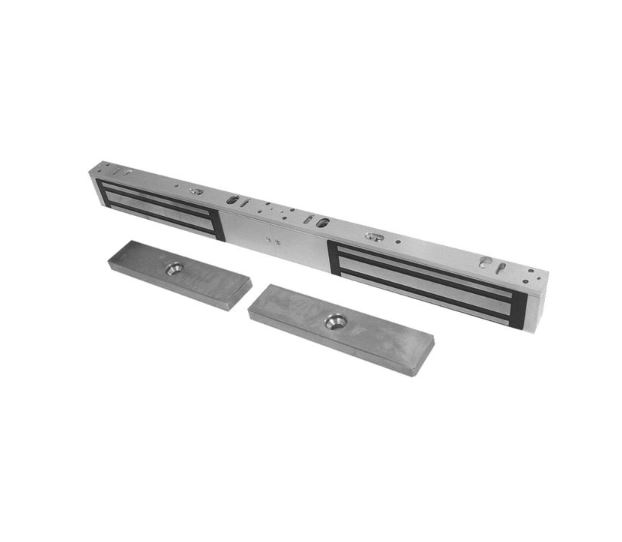

Magnetic door lock Double Maglock Slimline
Size (mm): 500 (l) x 42 (w) x 26 (d)
Cost effective maglock for low security & internal doors
Unmonitored with Door Status output

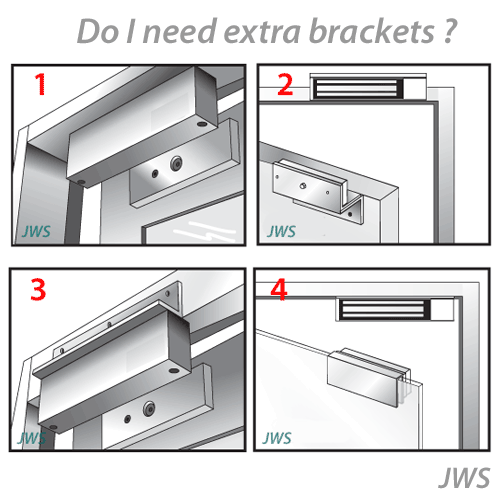

Monitored with Door Status outputDo I need extra brackets for my installation?
Please see image above for details.Please remember to order TWO brackets per Double Maglock!
1. Standard installation - no extra bracket required
2. Inward opening / swinging door - Z & L Bracket required
3. Narrow door frame - L Bracket required
4. Glass door leaf - U bracket required
Operating Voltage: 12/24VDC (set by jumper on lock)
Current Consumption: 500mA @ 24VDC or 1A @ 12VDC
Holding Force 300llb / 150kg approx.
JWS Slimline Maglock Guide
