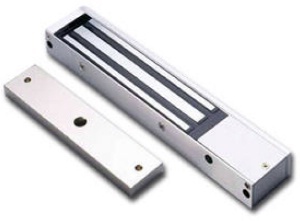

Slimline Magnetic door locks suitable for FD30 and FD60 fire doors
Size (mm): 250 (l) x 42 (w) x 26 (d)
Cost effective maglock for low security & internal doors
Available as Unmonitored, Unmonitored c/w Door Status, Monitored, and Monitored + Door Status

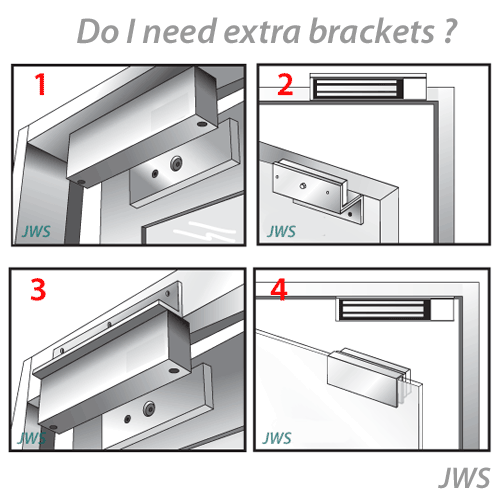

Do I need extra brackets for my installation?
Please see image above for details.
1. Standard installation - no extra bracket required
2. Inward opening / swinging door - Z & L Bracket required
3. Narrow door frame - L Bracket required
4. Glass door leaf - U bracket required
Operating Voltage: 12/24VDC (set by jumper on lock)
Current Consumption: 250mA @ 24VDC or 500mA @ 12VDC
Holding Force 600 llb / 300kg approx.
JWS Slimline Maglock Guide
