CDVI Lock Releases Economy Range

CDVI Lock Releases Economy Range
  Zoom

Fail Secure & Safe Rim / Mortice lock releases

Part Number:  GAE
£16.80 ex 20% VAT (£20.16 inc. VAT)
17 in stock, immediate despatch

17 in stock, immediate despatch

Same Day Despatch on working days.

-
+

Euro style lock release / strike kit with fixed jaw - 12v AC / DC

Fail Secure  (Fail Locked)

Can be installed surface or flush


Lock releases stocked by JWS:
Supplied as standard with both plates - painted finish

Part No. Voltage Fail Action Jaw Type Continuous Rated
GAE 12V ac/dc Secure Fixed No
GAER 12V ac/dc       Secure Adjustable No
GAER12CC 12V ac/dc Secure Adjustable Yes
GAEI12 12Vdc Safe Adjustable No
GAER24CC 24Vdc Secure Adjustable Yes
GAEIR24 24Vdc Safe Adjustable No

GAE series of euro-style strike kits offer excellent value and performance for low to medium security locking.

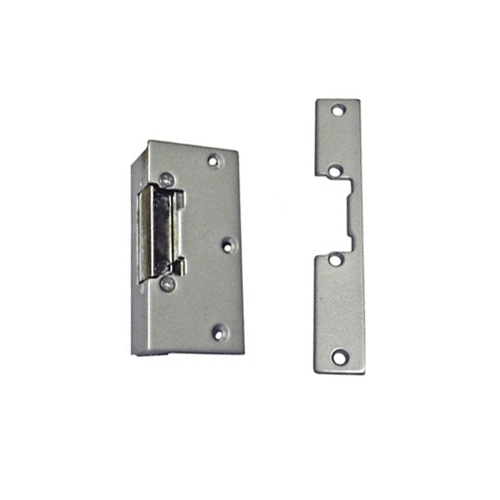

Includes strike body, a surface rim case and a mortice plate

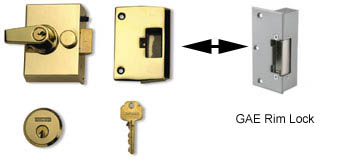

GAE series typical use with a rim latch lock (not supplied)



The optional adjustable jaw allows a simple method of adjustment where doors have a tendency to expand or contract

The factory-fitted varistor offers protection of back-emf to any control equipment which is operating the strike.
( no need for engineer to fit a diode).




Dimensions, strike 90 x 28 x 20mm
Dimensions, faceplate 158 x 25 x 3mm
Dimensions, surface case 105 x 50 x 36mm
Voltage 12Vac/dc
Current, fail secure (ac/dc) 540mA @ 12Vac, 630mA @ 12Vdc
Current, fail safe (dc only) 200mA @ 12Vdc
Fixed jaw
Warranty 5 years
Compliance CE, ROHS & WEEE






For Help, Call 01761 414 700

Need advice on which product to purchase? No problem. Call our friendly sales and support team on 01761 414 700 or send us an email. We're more than happy to discuss your requirements.
