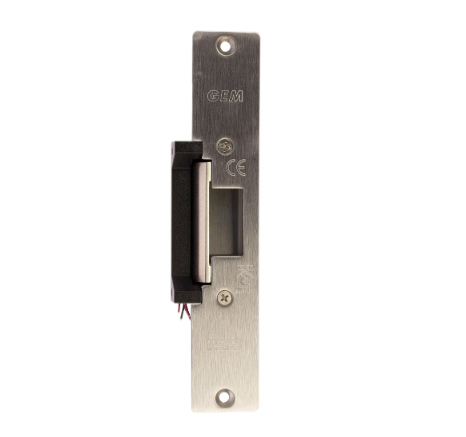

Electric Door Release, Fail Safe, Fail Secure, 12V, 33 mm

12-24v DC lock release with on-site selectable Fail Secure and Fail Safe options.

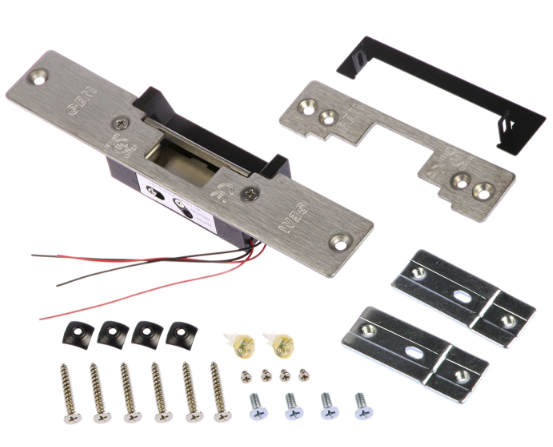

Includes strike body, a surface rim case and a mortice plate, can be installed surface or flush.

Technical Specifiction

Voltage tolerance: ±15%.
Current draw: 0.25A at 12Vdc, 0.15A at 24Vdc (at temperature 20°C).
Operating temperature: -10~45°C (14 to 131°F).
Lock’s surface temperature: Current temperature ±20% (when power is on).
Sensor switch monitored output indicates lockset locked or unlocked status (SPDT rated 2A at 125Vdc).
Humidity: 0~95% non-condensing.
Horizontal or vertical installation.
Tested to 1,000,000 cycles.
2000lbs jaw strength pull testing.
741-8240

• Voltage tolerance: ±20%.
• Current draw: 0.25A at 12Vdc, 0.15A at 24Vdc (at temperature 20°C).
• Operating temperature: -10~45°C(14 to 131°F).
• Lock’s surface temperature: Current temperature ±20% (when power is on).
• Humidity: 0~95% non-condensing.
• Tested to 1,000,000 cycles
• 2000lbs jaw strength pull testing.
