Automatic Door 'Touch To Open' Slimline Touch Sensor (Hardwired)

Automatic Door 'Touch To Open' Slimline Touch Sensor (Hardwired)
  Zoom

Touch Sensitive switch, a vandal resistant Push Pad alternative

Part Number:  ARCOPEN
£62.00 ex 20% VAT (£74.40 inc. VAT)
172 in stock, immediate despatch

172 in stock, immediate despatch

-
+

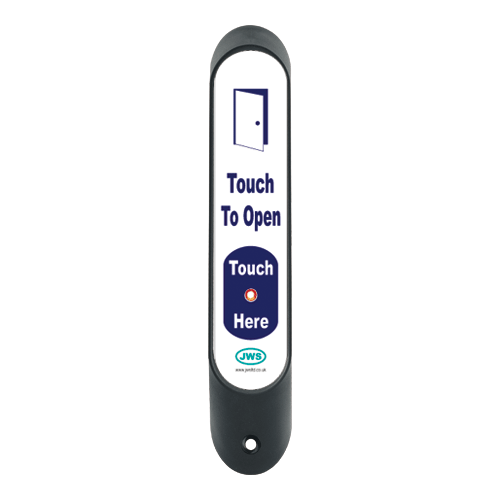

JWS Hardwired (12-24v DC) Touch Sensor in slimline housing. Ideal for manually impulsing (triggering) door openers, activating access control, door entry & other switching applications. Signage: 'Touch To Open' with door logo.

Suitable for internal & external installation (gasket & metal backplate included) and those subject to abuse. Its slim profile allows fitting on door jambs & architraves.

Unlike push pads no physical pressure is required making them ideal for users with physical disabilities. The LED & signage aids users with visual impairments (superior LRV rating than a push pad), audible indication provided by on-board sounder.

Architrave/Slimline Touch Sensors

Instructions PDF< Click me to view (PDF)


Technical Specification
Operating Voltage: 12 to 24v DC
Current Consumption : 10mA (qui) 40mA (active)
Relay Connections*: NC,NO, C and LED + / -
Dimensions: (mm): 225 (h) x 40 (w) x 49 (d)
Activation warning: Red 'ultrabrite' LED and sounder
Housing Material: Nylon (glass filled)
Housing Backplate: 2mm steel (anodised)
Backplate Gasket: 2mm foam
Signage Plate: Touch acrylic
Signage Makeup: Back printed long life vinyl
Signage Inks: Long life Roland Eco-Sol UV resistant
IP Rating: IP54

*The on-board relay has Common, Normally Open and Closed connections available as well as the LED which can be wired to be either constantly ON, OFF when activated or ON when activated.



For Help, Call 01761 414 700

Need advice on which product to purchase? No problem. Call our friendly sales and support team on 01761 414 700 or send us an email. We're more than happy to discuss your requirements.
