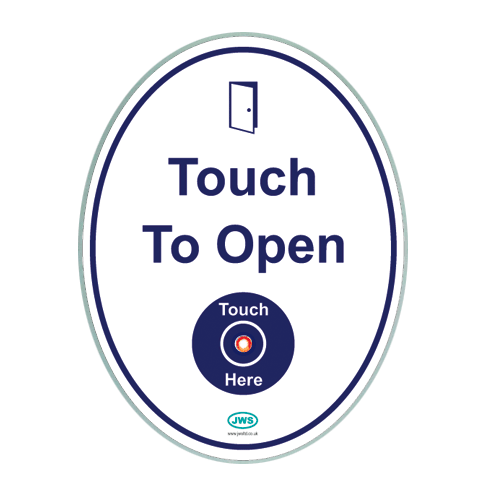

Automatic Door 'Touch To Open' Oval Touch Sensor (Hardwired)
  Zoom
 Automatic Door 'Touch To Open' Oval Touch Sensor (Hardwired)Automatic Door 'Touch To Open' Oval Touch Sensor (Hardwired)

Automatic Door 'Touch To Open' Oval Touch Sensor (Hardwired)

12 / 24v DC Oval Touch Sensor for Post Mounting

Part Code:  OOPEN
£95.00 ex 20% VAT (£114.00 inc. VAT)
8 in stock, immediate despatch

8 in stock, immediate despatch

Same Day Despatch on working days.
-
+

JWS Hardwired (12-24v DC) Oval Touch Sensor for post mounting. Ideal for manually impulsing (triggering) door openers, activating access control, door entry & other switching applications. Signage: 'Assisted Door' with wheelchair and pram logos.

Unlike push pads no physical pressure is required making them ideal for users with physical disabilities. The LED & signage aids users with visual impairments (superior LRV rating than a push pad), audible indication provided by on-board sounder.

Oval Touch Sensors

Instructions PDF< Click me to view (PDF)


Technical Specification
Operating Voltage: 12 to 24v DC
Current Consumption : 10mA (qui) 40mA (active)
Relay Connections*: NC,NO, C and LED + / -
Dimensions: (mm): 160mm(w) x 37mm(d) x 210mm(h).
Activation warning: Red 'ultrabrite' LED and sounder
Housing Material: ABS
Signage Plate: 5mm Touch acrylic
Signage Makeup: Back printed long life vinyl
Signage Inks: Long life Roland Eco-Sol UV resistant
IP Rating: IP54

*The on-board relay has Common, Normally Open and Closed connections available as well as the LED which can be wired to be either constantly ON, OFF when activated or ON when activated.

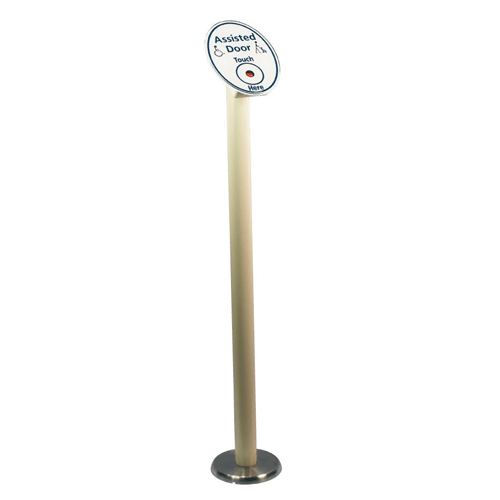

Mounting Post purchased separately.


For Help, Call 01761 414 700

Need advice on which product to purchase? No problem. Call our friendly sales and support team on 01761 414 700 or send us an email. We're more than happy to discuss your requirements.
