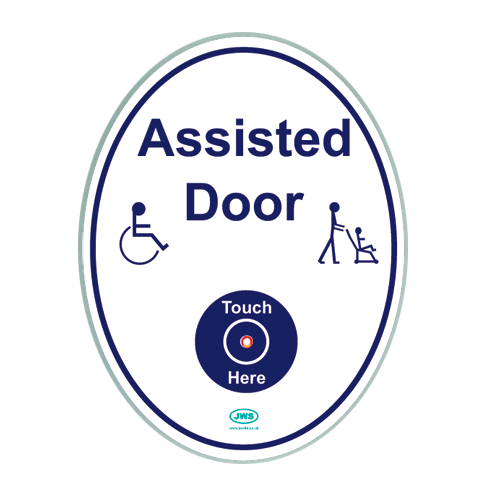

Oval Touch Sensors
< Click me to view (PDF)Technical Specification
Operating Voltage: 12 to 24v DC
Current Consumption : 10mA (qui) 40mA (active)
Relay Connections*: NC,NO, C and LED + / -
Dimensions: (mm): 160mm(w) x 37mm(d) x 210mm(h).
Activation warning: Red 'ultrabrite' LED and sounder
Housing Material: ABS
Signage Plate: 5mm Touch acrylic
Signage Makeup: Back printed long life vinyl
Signage Inks: Long life Roland Eco-Sol UV resistant
IP Rating: IP54
*The on-board relay has Common, Normally Open and Closed connections available as well as the LED which can be wired to be either constantly ON, OFF when activated or ON when activated.
Mounting Post purchased separately.
