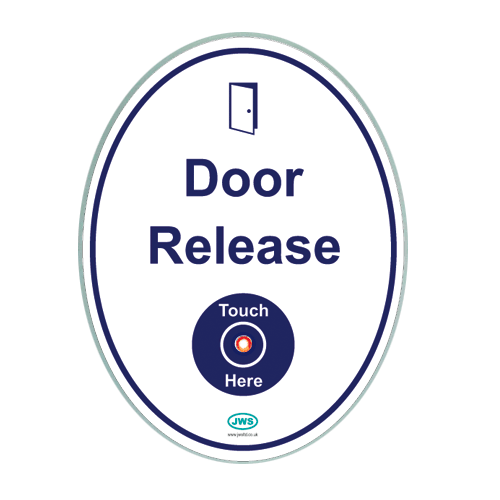

Automatic Door 'Door Release' Oval Touch Sensor (Hardwired)

Automatic Door 'Door Release'  Oval Touch Sensor (Hardwired)
  Zoom

12 / 24v DC Oval Touch Sensor for Post Mounting

Part Number:  OREL
Our Price:  £72.00ex 20% VAT, (£86.40 inc. VAT)

Availability:



10 in stock, immediate despatch

+

JWS Hardwired (12-24v DC) Oval Touch Sensor for post mounting. Ideal for manually impulsing (triggering) door openers, activating access control, door entry & other switching applications. Signage: 'Door Release' with door logo.

Unlike push pads no physical pressure is required making them ideal for users with physical disabilities. The LED & signage aids users with visual impairments (superior LRV rating than a push pad), audible indication provided by on-board sounder.

Oval Touch Sensors

Instructions PDF< Click me to view (PDF)


Technical Specification
Operating Voltage: 12 to 24v DC
Current Consumption : 10mA (qui) 40mA (active)
Relay Connections*: NC,NO, C and LED + / -
Dimensions: (mm): 160mm(w) x 37mm(d) x 210mm(h).
Activation warning: Red 'ultrabrite' LED and sounder
Housing Material: ABS
Signage Plate: 5mm Touch acrylic
Signage Makeup: Back printed long life vinyl
Signage Inks: Long life Roland Eco-Sol UV resistant
IP Rating: IP54

*The on-board relay has Common, Normally Open and Closed connections available as well as the LED which can be wired to be either constantly ON, OFF when activated or ON when activated.

Mounting Post purchased separately.
