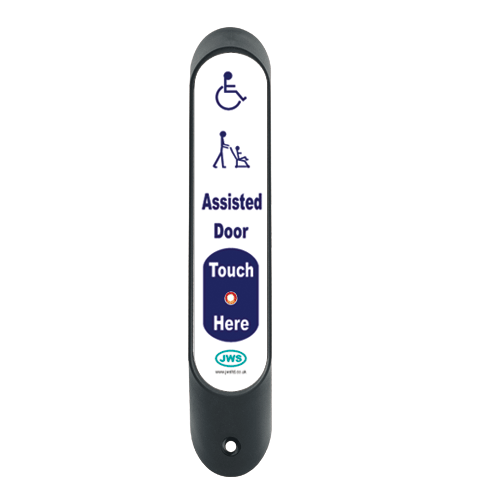

Automatic Door 'Assisted Door' Slimline Touch Sensor (Hardwired)

Automatic Door 'Assisted Door' Slimline Touch Sensor (Hardwired)
  Zoom

Touch Sensitive switch, a vandal resistant Push Pad alternative

Part Number:  ARCASS
Our Price:  £62.00(Exc. 20% VAT), (£74.40 Inc. VAT)

Availability:



104 in stock, immediate despatch

+

JWS Total Installed Price Service - Let us provide the right installer for you.
Over 25 years working with reliable qualified trade installers.

EN16005 compliant Installation and Commissioning
Starts around £350+ VAT
Access Control installation POA


Contact JWS or click here for details



JWS Hardwired (12-24v DC) Touch Sensor in slimline housing. Ideal for manually impulsing (triggering) door openers, activating access control, door entry & other switching applications. Signage: 'Assisted Door' with wheelchair & pram logos.

Suitable for internal & external installation (gasket & metal backplate included) and those subject to abuse. Its slim profile allows fitting on door jambs & architraves.

Unlike push pads no physical pressure is required making them ideal for users with physical disabilities. The LED & signage aids users with visual impairments (superior LRV rating than a push pad), audible indication provided by on-board sounder.

Architrave/Slimline Touch Sensors

Instructions PDF< Click me to view (PDF)


Technical Specification
Operating Voltage: 12 to 24v DC
Current Consumption : 10mA (qui) 40mA (active)
Relay Connections*: NC,NO, C and LED + / -
Dimensions: (mm): 225 (h) x 40 (w) x 49 (d)
Activation warning: Red 'ultrabrite' LED and sounder
Housing Material: Nylon (glass filled)
Housing Backplate: 2mm steel (anodised)
Backplate Gasket: 2mm foam
Signage Plate: Touch acrylic
Signage Makeup: Back printed long life vinyl
Signage Inks: Long life Roland Eco-Sol UV resistant
IP Rating: IP54

*The on-board relay has Common, Normally Open and Closed connections available as well as the LED which can be wired to be either constantly ON, OFF when activated or ON when activated.
