Automatic Door 'Assisted Door' Round Touch Sensor (Hardwired) Welsh

Automatic Door 'Assisted Door' Round Touch Sensor (Hardwired) Welsh
  Zoom

Touch Sensitive switch, a vandal resistant Push Pad alternative

Part Number:  RVRASS-BI-EW
£62.00 ex 20% VAT (£74.40 inc. VAT)
38 in stock, immediate despatch

38 in stock, immediate despatch

-
+

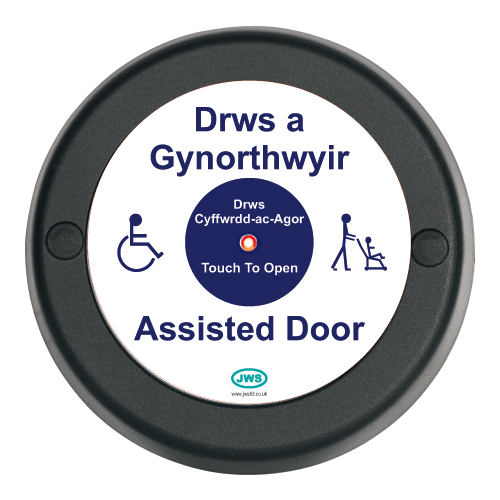

Hardwired (12-24v DC) Touch Sensor in RVR / round housing. Ideal for manually impulsing (triggering) door openers, activating access control, door entry and other switching applications. Signage: 'Assisted Door' with wheelchair & pram logos.

Suitable for internal and external installation (gasket & metal backplate included) and those subject to abuse. Its large round design makes it a perfect substitute for the push pad, providing more features and being aesthetically pleasing in comparison.

Unlike push pads no physical pressure is required making them ideal for users with physical disabilities. The LED & signage aids users with visual impairments (superior LRV rating than a push pad), audible indication provided by on-board sounder

The on-board relay has Common, Normally Open and Closed connections available as well as the LED which can be wired to be either constantly ON, OFF when activated or ON when activated.

Round Touch Sensors

Instructions PDF< Click me to view (PDF)


Technical Specification
Operating Voltage: 12 to 24v DC
Current Consumption : 10mA (qui) 40mA (active)
Relay Connections*: NC,NO, C and LED + / -
Dimensions: (mm): 166 (dia) x 35 (d)
Activation warning: Red 'ultrabrite' LED and sounder
Housing Material: Nylon (glass filled)
Housing Backplate: 2mm steel (anodised)
Backplate Gasket: 2mm foam
Signage Plate: Touch acrylic
Signage Makeup: Back printed long life vinyl
Signage Inks: Long life Roland Eco-Sol UV resistant
IP Rating: IP54

*The on-board relay has Common, Normally Open and Closed connections available as well as the LED which can be wired to be either constantly ON, OFF when activated or ON when activated.
