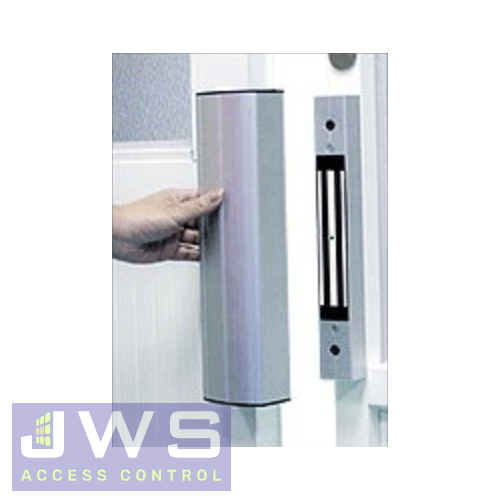

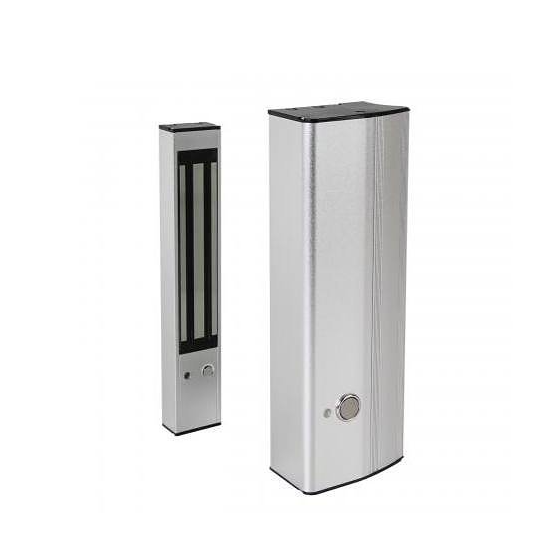

The DHM600 is a door handle magnetic lock with a 280kg holding force and built in surge protection.
This kit is supplied with a maglock, door handle, armature and fixing kit and should be installed at the centre of the door leaf to prevent distortion.
Technical Specifications
Aluminium housing
12/24 VDC @500/250mA
280kgs (600lb) holding force
Built in surge protection Monitored (Door open or Door closed detection)
Suitable for 90 degree wooden or aluminium doors
Delay timer 0/2.5/5/9 seconds
Built in exit button
Weight: 3.0kg
Features:
Slim line mini magnet
Built in delay timer
Install at centre of door leaf to prevent distortion
No residual magnetism
Dimensions
Handle:300x90/100x58 (mm)
Maglock:275x46x30 (mm)
Current Consumption
12v DC @ 500mA / 24vDC @ 250mA
Technical SpecificationOperating Voltage: 12/24VDC (set by jumper on lock)
Current Consumption: 250mA @ 24VDC or 500mA @ 12VDC
Aluminium Finish
Holding Force 600 llb / 300kg approx.
JWS Slimline Maglock Guide
