Automatic Door Activation Sensor HR50 HR50-UNI
Uni-directional detecting technology for Automatic Doors allows the HR50-UNI to be used as an activation sensor by mounting above the door.
Simply install, configure your required detection area using the sensitivity potentiometer and adjustable planar antenna.

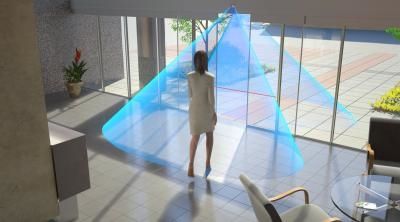

Large Detection Area 4m wide x 2m. Deep detection area suits large Automatic Door openings or doors approached by fast moving traffic.lim modern design to suit all door types. Flexible. The HR50 Uni directional is perfectly suited for almost any type of door or configuration including supermarkets and do-it-yourself shops.
Need advice ? Call us on 01761 414700
All work undertaken on Automatic Doors must comply with EN16005
Model: HR50 & HR50-UNI: Pedestrian Door Activation
Detection Method: K-Band 24.125Ghz - Microwave Motion Detection
Installation height: Max 4000mm (13.1ft)
Sensor Dimensions: 120mm (W), 70mm (H), 41.5mm (D)
IP Rating: 54
Power Supply: 12 to 30V DC, 12 to 24V AC
Power Consumption: 40mA (DC24V)
Operating temperature: -30°C to +55°C, (-22°F to 131°F)
