Automatic Door Safety Sensor for Automatic Swing Doors
Model: SSS-5M1 = 692 mm width
- Door leaf mounted presence safety sensor with cable loop included.
- Automatic swing door safety sensor with 6 spots of detection per PCB unit.

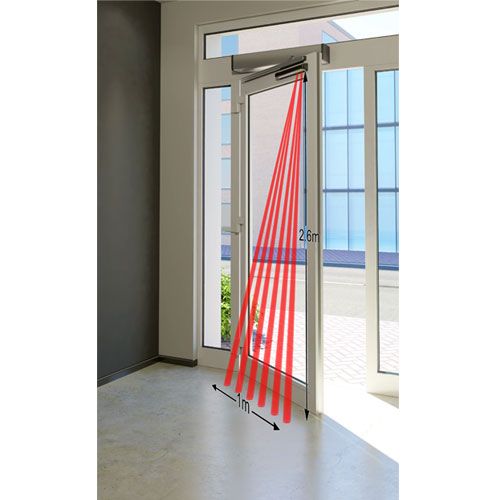

- 900mm of door face safety at an installation height of 2.2m
- Robust, easy to install and EN16005 compliant.
All work undertaken on automatic doors must comply with EN16005. JWS recommend using a suitably qualified company / contract
Full instructions are provided in the Safety Sensor installation manual – please ensure you utilise a Field Test Box - this allows UK door installers, and owners, to verify the correct operation of safety sensors on automatic doors during on-site installation and regular maintenance checks.
At the time of writing the field test box dimensions are:
700mm (h) x 300mm (w) x 200mm (d)
Safety Sensors should be configured so that in the protection area, the field test box is detected in all positions of the door travel.
Technical Specification
- Six spot infrared safety curtain with 1 PCB unit
- Safety beams can be focused very close to the ground for maximum safety
- Externally and Internally monitored safety system
- Simple push button setting of sensor detection distance
- Robust housing and parts prevent damage during installation and operation
| Installation Height | 2.6m (8.53ft) Max |
| Beam | 6 spots |
| Angle Adjustment | 5¡ / 10¡ / 15¡ / 20¡ / 25¡ (Angle Stabilizer) |
| Power Supply | AC/DC 12 ~ 24V ±10% |
| Response Time | Less Than 0.1s |
| Output Holding Time | Approx. 0.5s |
| Presence Timer | |
| IP Rating | 54 |
| Detection Range | 0 ~ 2.5m (0 ~ 8.2ft) Max |
