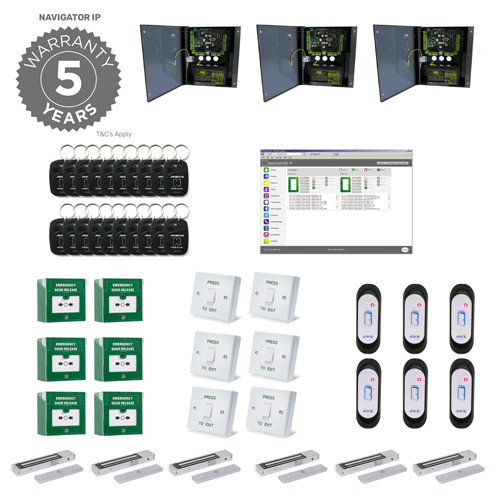

What's included in Kit 6?

Please note doors on the same Access Control Unit must be within 25m of each other ( for greater distances purchase another Navigator IP Access Control Unit - they can be networked* together with CAT5 (LAN) or Belden 9501 cable ( RS485)

The three Access Control Units in this kit can be networked together to allow you to control access, generates reports etc. from all doors via a single PC or laptop either connected   to the Master** Access Control Unit directly or over your network***. As with all Navigator IP products the system can happily exist as a standalone without the need for a PC or laptop connection.

*Up to 50 controllers ( 100 doors can be part of one network centrally controlled by one Navigator IP Access Control Unit )
** Simply make a Navigator Access Control to a "Master" by setting the on board DIP switch to "1"
*** Connect to your LAN or wireless Router

• 3 x Navigator IP Two Door Access Control Units
   (In metal cabinet complete with built-in1 2v DC 2.5A lock power supply)

• Free Embedded Fully Featured Access Control Software via your Browser (no internet required)

• 6 x JWSMFPROX Secure Sector Proximity Readers

• 20 x Secure Sector Proximity Fobs or Cards (choose above)

• 6 x Monitored Slimline Maglock

• 6 x Double Pole Resettable Breakglass (inc. cover & sounder)

• 6 x Exit switches with surface mount back boxes

With JWS Secure Sector Proximity Technology

• 1 to 100 doors & 2,500 users
• Cost effective Secure Sector Fobs & Cards
• Occupancy / People counting feature
• 5 Year Hardware Warranty included
• Free embedded software & remote setup
• Use PC, tablet or smartphone
• UK Designed, manufactured & supported
• Designed, manufactured & supported in Britain

• 1 or 2 Doors per Navigator IP Access Control Unit
• Browser-based (not Cloud) - Internet or full-time PC not required
• Embedded firmware, no software to purchase, license or install!
• Now with JWS Secure Proximity Reader, Cards and Fobs
• Add/delete cards & fobs in seconds, enrolment reader not required
• Automatically produce Time & Data User Reports & Spreadsheets
• Cost effective when compared to other Access Control providers
• Rental properties e.g. Set PINs remotely with Start & Expiry Dates
• User, Event & Door alerts e.g. Breakglass pressed, door left open

Installation Advice and Support

Live Chat or Tel. 01761 414 700
Email: sales@jwsltd.co.uk

Try it now!

Navigator IP - Optimised for Chrome

*Emails / remote access requires Internet connection. Texts incur additional charges.

Navigator IP Technical data sheet

For more information about Navigator IP including software and installation, visit the Navigator IP section
