Access Control Kit, 1 Door, Free Built-in Software, 5 Year Warranty
  Zoom
Access Control Kit, 1 Door, Free Built-in Software, 5 Year WarrantyAccess Control Kit, 1 Door, Free Built-in Software, 5 Year WarrantyAccess Control Kit, 1 Door, Free Built-in Software, 5 Year WarrantyAccess Control Kit, 1 Door, Free Built-in Software, 5 Year Warranty

Access Control Kit, 1 Door, Free Built-in Software, 5 Year Warranty

Standalone and Networkable Access Control System (1 to 100 doors) with Keypad & Proximity Reader

Part Code:  NAVIGATORIPKIT1-PINPROX
£545.00 ex 20% VAT (£654.00 inc. VAT)
19 in stock, immediate despatch

19 in stock, immediate despatch

Same Day Despatch on working days.


-
+
Optional Extras:
CQR 8 Core White CCA Cable 100 metresCQR 8 Core White CCA Cable 100 metres
Yuasa NP7-12 12V 7Ah Sealed Lead Acid Rechargeable BatteryYuasa NP7-12 12V 7Ah Sealed Lead Acid Rechargeable Battery
Slimline Magnetic door lock BracketsSlimline Magnetic door lock Brackets

Users can gain access with either:

1.       Their PIN number
2.       Their Card / Fob
3.       Their PIN and Card / Fob ( 2 Credentials )

What's included in Kit 1?

  • Navigator IP Two Door Access Control Unit
    (In metal cabinet complete with built-in1 2v DC 2.5A lock power supply)

  • Free Embedded Fully Featured Access Control Software via your Browser (no internet required)

  • JWSECOPIN-BK Keypad & Proximity Reader

  • 20 x FIK Proximity Fobs or Cards (choose above)

  • Monitored Slimline Maglock

  • Double Pole Resettable Breakglass (inc. cover & sounder)

  • Exit switch and Surface Mount back box

  • Can be upgraded to a full two door system in the future by simply adding a Reader, Break Glass, Exit switch and lock

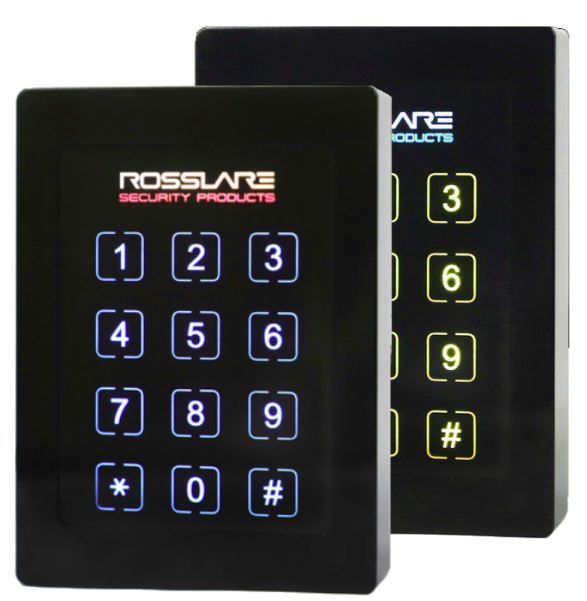

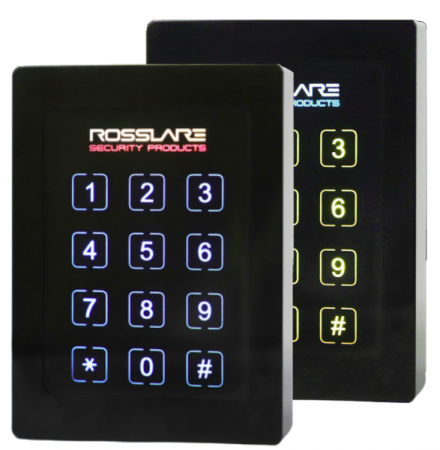

JWS ECOPIN-BK Features

IP 65 Rated (all weather, indoor and outdoor use)
Keypad for use with the Navigator IP Access Control range of products.

The JWSECOPIN-BK readers provide an effective solution where keypad access / PIN alongside Proxomity Fob & Cards is required using: Times Zones restrictions for keypad access / PIN

Set PINs to work certain hours of the day and days of the week etc.
Start & Expiry Dates for keypad access / PIN Allows you to set a date for a PIN to start working and a date for it to stop working.

When used with Navigator IP you can have a 1 to 8 - digit PIN/code plus the # key to enter. Airbnb / rental property features e.g. activate/change PINs remotely when using with Navigator IP* * Internet connection required for external connectivity e.g. remote access, email,

Technical Specification
Dimensions: L 118mm × W 80mm × H 17.5mm
Suitable for both indoor and outdoor applications (IP 65)
Tri-colored light bar, built-in sounder with selectable LED/sounder control input
Attractive yet robust with shiny blue illuminated metal keys
2 tri-colored LEDs and an integral sounder
2 Credentials
FIK Proximity Fobs or Cards (These are not JWS Secure Sector Technology - JWSMFPROX add on required)



With JWS Secure Sector Proximity Technology

  • 1 to 100 doors & 2,500 users
  • Cost effective Secure Sector Fobs & Cards
  • Occupancy / People counting feature
  • 5 Year Hardware Warranty included
  • Free embedded software & remote setup
  • Use PC, tablet or smartphone
  • UK Designed, manufactured & supported
  • Designed, manufactured & supported in Britain

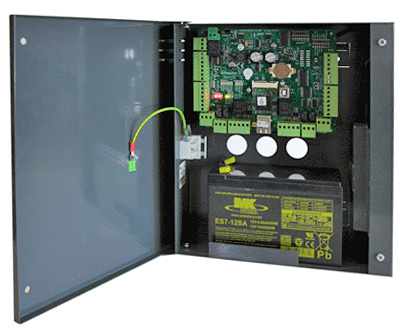

Access Control Cabinet
  • 1 or 2 Doors per Navigator IP Access Control Unit
  • Browser-based (not Cloud) - Internet or full-time PC not required
  • Embedded firmware, no software to purchase, license or install!
  • Now with JWS Secure Proximity Reader, Cards and Fobs
  • Add/delete cards & fobs in seconds, enrolment reader not required
  • Automatically produce Time & Data User Reports & Spreadsheets
  • Cost effective when compared to other Access Control providers
  • Rental properties e.g. Set PINs remotely with Start & Expiry Dates
  • User, Event & Door alerts e.g. Breakglass pressed, door left open

Installation Advice and Support

Live Chat or Tel. 01761 414 700
Email: sales@jwsltd.co.uk

Navigator IP - Optimised for Chrome

*Emails / remote access requires Internet connection. Texts incur additional charges.

Navigator IP Technical data sheet


For more information about Navigator IP including software and installation, visit the Navigator IP section

For Help, Call 01761 414 700

Need advice on which product to purchase? No problem. Call our friendly sales and support team on 01761 414 700 or send us an email. We're more than happy to discuss your requirements.
