JWS Slimline Touch For Help DDA Alerter DDATOUCH
  Zoom
 JWS Slimline Touch For Help DDA Alerter DDATOUCHJWS Slimline Touch For Help DDA Alerter DDATOUCH

JWS Slimline Touch For Help DDA Alerter DDATOUCH

MicroGuard™ Anti-Microbial Wireless Sensor & Sounder EX-DDA-DB

Part Code:  TXARCHELPBUZZ
£120.00 ex 20% VAT (£144.00 inc. VAT)
192 in stock, immediate despatch

192 in stock, immediate despatch

Same Day Despatch on working days.
-
+
Optional Extras:

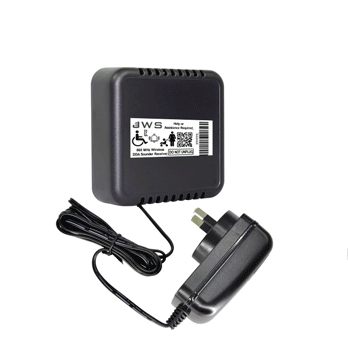

Add-on Sounder & PSU for TXARCHELPBUZZAdd-on Sounder & PSU for TXARCHELPBUZZ

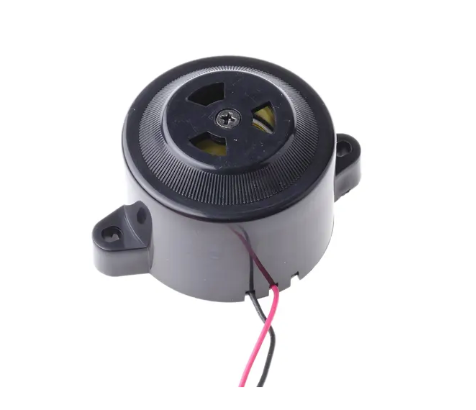

100dB 12V DC Adjustable Sounder100dB 12V DC Adjustable Sounder
Touch For Assistance Through Glass Sign (Left Arrow)Touch For Assistance Through Glass Sign (Left Arrow)
Touch For Assistance Through Glass Sign (Right Arrow)Touch For Assistance Through Glass Sign (Right Arrow)
Wheelchair Ring Bell For Assistance SignageWheelchair Ring Bell For Assistance Signage

MicroGuard™ Anti-Microbial Coated Wireless (868MHz) battery powered DDATOUCH style Touch Sensor call unit in slimline 'ARC' housing with corresponding pre-learned plug-in sounder & alerter unit  - takes minutes to install!

New Model Touch Sensor Transmitter now shipping.
Sounder and LED for Audible & Visual Indication / feedback for the user,
Upgraded wireless range: 10 times greater distance - in excess on 200m.


DDA Door Bell ideal for shops, receptions, public areas etc. when a means of calling for help or assistance is required. Signage: 'For Help' with wheelchair & pram logos.

Suitable for internal & external installation (gasket & metal backplate included) and those subject to abuse. Its slim profile allows fitting on door jambs & architraves and it's good for over 120,000 operations on one set of batteries!

Unlike push pads, no physical pressure is required to operate making them ideal for users with physical disabilities. Its signage aids users with visual impairments giving it a higher LRV value than its counterparts (e.g. a push pad).

DDA Door Bell Product Code: EX-DDA-DB





Touch For Help / DDA Alerters

Instructions PDF< Click me to view (PDF)


Technical Specification
Complete with Plug-in sounder/receiver unit
Specified batteries: Duracell Procell (Two included)
(Specified batteries must be used to achieve quoted life expectancy)
Battery Life Expectancy: Up to 120,000 operations (has no LED)
Operating Frequency: 868MHz (Secure Encrypted Wireless)

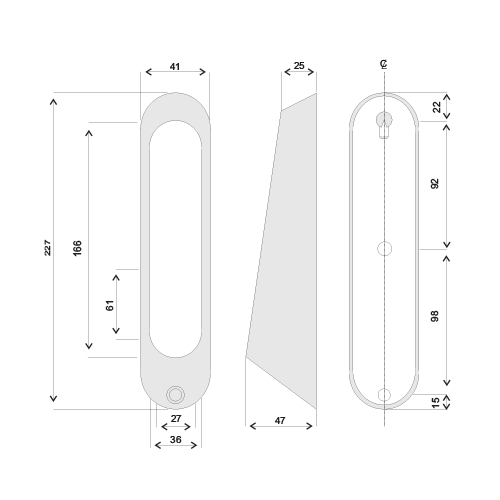

Dimensions: (mm): 225 (h) x 40 (w) x 49 (d)
Housing Material: Nylon (glass filled)
Housing Backplate: 2mm steel (anodised)
Signage Plate: Touch acrylic
Signage Makeup: Back printed long life vinyl
Signage Inks: Long life Roland Eco-Sol UV resistant
IP Rating: IP54



For Help, Call 01761 414 700

Need advice on which product to purchase? No problem. Call our friendly sales and support team on 01761 414 700 or send us an email. We're more than happy to discuss your requirements.

Also viewed

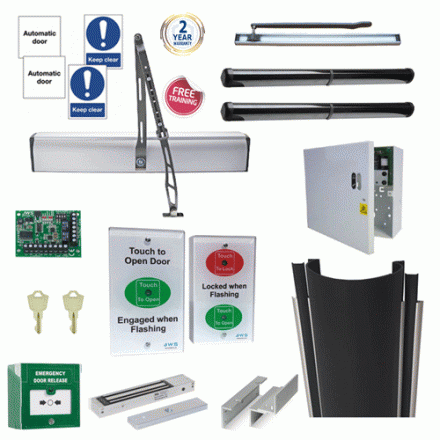

Automatic Toilet Door & Locking Complete Kit 2

Automatic Toilet Door & Locking Complete Kit 2

Touch or Touch Free Toilet Automation System inc. DWPS102U, Two Safety Sensors and Fingerguard

£1,362.00
6 in stock, immediate despatch  6 in stock, immediate despatch

Access Control Kit, 1 Door, Free Built-in Software, 5 Year Warranty

Access Control Kit, 1 Door, Free Built-in Software, 5 Year Warranty

Standalone and Networkable Access Control System (1 to 100 doors) with Secure Sector Proximity Readers and User Cards & Fobs

£545.00
64 in stock, immediate despatch  64 in stock, immediate despatch

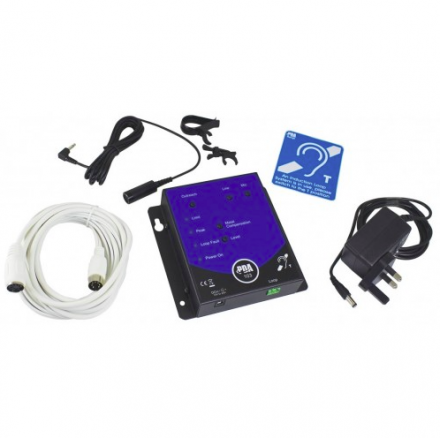

Hearing loop amplifier for shop counters & kiosks
