Hearing loop amplifier for shop counters & kiosks

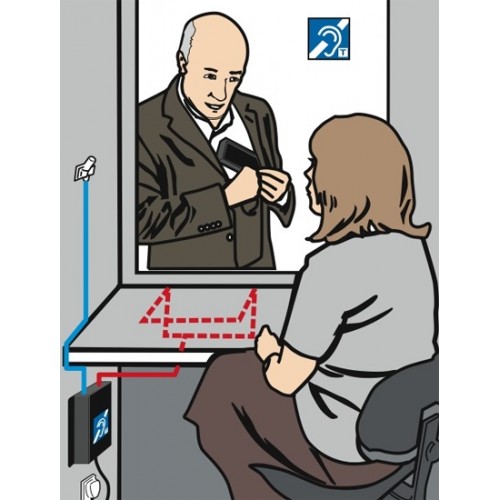

This kit contains everything you need to create a high-quality fixed hearing loop system for a counter, desktop or ticket booth.

Ideal for coffee shops, banks, post offices, small meeting rooms, reception desks, ticket offices and any other application requiring restricted or small area coverage. (1.2m square area).

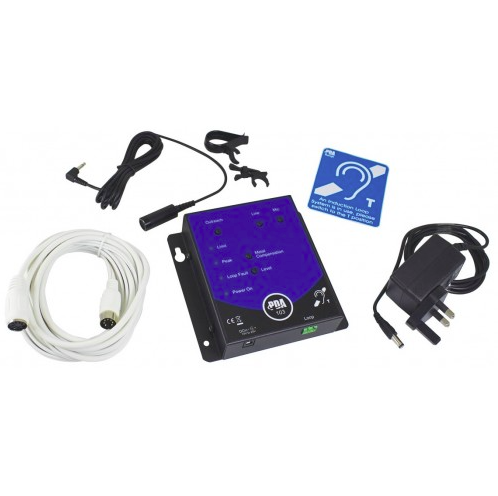

Kit Comprises:
PDA103 amplifier, PL1/PSU1 power supply, AMT microphone, TX2 pre-formed counter loop, 'Hearing Loop Fitted' sticker.

PDA103C
RS Stock No.: 522-935
CPC DP34977
CEF 2281-7578

Instruction Manual

< Click me to view (PDF)

Technical Specification

PDA103 amplifier includes a microphone input, a line level input and an 'outreach' socket.
Metal compensation control helps improve intelligibility in rooms with high metal content.
Adjustable mic, line level and 'outreach' controls.
Drive (level) control allows the amplifier's output stage to be set-up to suit the exact characteristics of the application.
Audio processor with automatic gain control, compensates for poor microphone techniques and helps suppress loud noises, hisses and clicks.

Designed to be wall-mounted using the keyholes provided on the amplifier casing.
Meets and exceeds the requirements of BS7594 and EN60118-4 when correctly installed

Amplifier Inputs: 3.5mm microphone jack socket, 3.5mm line level jack socket,
Outreach socket
Indicators: Power, Limit, Peak, Loop Fault Controls: Mic, Line, Outreach, Metal Compensation, Loop Drive (Level)
Coverage: 1.2m² approx

Amplifier dimensions (WxHxD): 135x130x35mm
Amplifier weight: 380g
