TLS is a simple access control system (locking and engaging) for toilet area(s).
Suitable for one, two or more doors simply order the quantity and design of Touch Sensors / Indicators to suit your application.
The Touch Free Sensor & indicator unit is coated with MicroGuard™
How it works:
Entry - Access can be gained into the toilet by initially opening the door manually. The door needs to be in a closed position before progressing to the next stage.

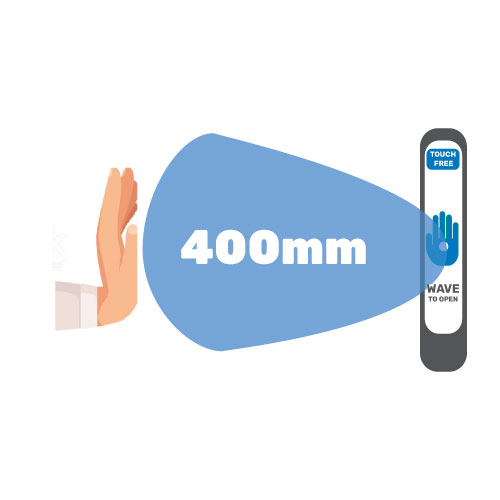

Locking - Use internal Touch Free Sensor which will activate the door lock(s). The internal Touch Free Sensors and external Indicator unit will flash, showing the user that the door is locked and to people outside, that the toilet is engaged.
Unlocking - Use the internal Touch Free Sensor again and the lock(s) is released, allowing the door to be opened manually.

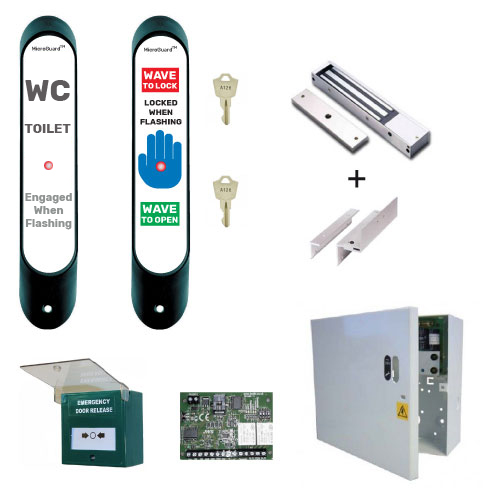

Whats in the kit?

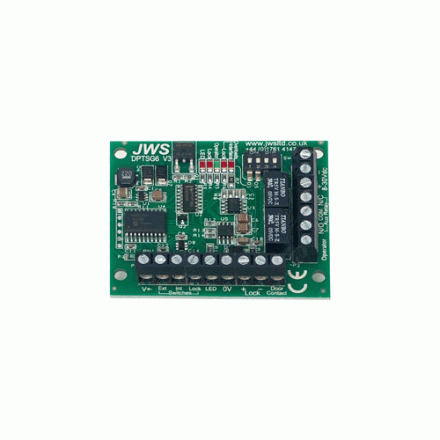

TLS PCB (already fitted in power supply)
12v 1A PSU (powers TLS and lock)
12v 1.2AHr Backup Battery
Open (External) Indicator unit
Keyswitch for emergency override
Lock (Internal) Touch Free Sensor ( which locks and unlocks the door)
Door Contact
Resettable Breakglass with Cover & 2 reset keys
User labels
Slimline Maglock
Z and L Bracket Kit
Technical SpecificationBreak glass & key-switch input to provide emergency override*
Door contact input to prevent false / accidental locking*
Can be used in toilets with one or multiple doors ( specify on order )
Activation LED on PCB
Operating voltage 12v DC ( 24v DC to order )
High visibility flashing LEDs
12v DC Maglock output
Simply to install, operate and maintain
* A Breakglass and /or key-switch (both included) must be incorporated into the system to provide a means of system override. A door contact must also be used to prevent accidental locking (also included).
TLS Data Sheet
