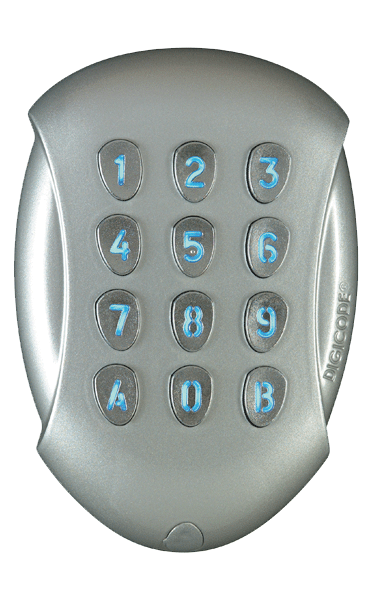

A keypad solution to areas where it is difficult or uneconomical to run cables which performs equally well indoors or outside.
Provides maximum resistance to vandalism due to its rounded edges which deflect being struck.A surface mount keypad with a very shallow profile (only 27mm), which gives it a "semi-flush" appearance.
The keypad has 22 individual user codes of 5-digits, with a master code which is used to enter the programming mode. There is audible feedback from the keypad which indicates to the user if entry has been granted or not, and in programming mode confirms the input of programmed information.
The keypad is compatible with all receivers in the Style 26 range.
Technical SpecificationAudio and visual confirmation signals
Modulation: AM/ASK
Encryption: Keeloq® rolling code
Dimensions (H x W x D): 110 x 75 x 15 mm
Power supply: Lithium battery 3.6V - LS14500 (included)
Power consumption : 28 mA during transmission - 0,8uA micro in sleep mode
Wireless RF keypad
Polished, high tensile alloy Zamak®
Backlit keys
Frequency: 433.92 Mhz
2 channels (A and B keys)

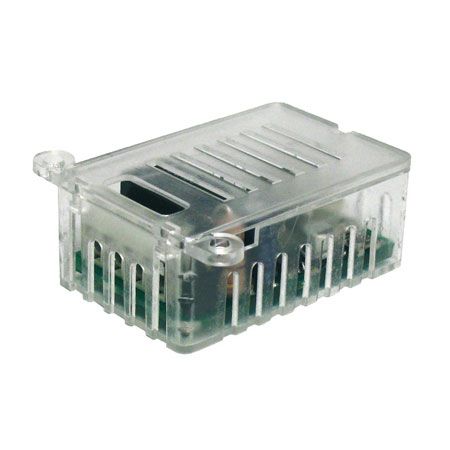

Compatible with Style 26 receivers
Compact
Structure
Mounting with Torx® screws
Molded epoxy resin
22 user codes: 4 or 5 characters
