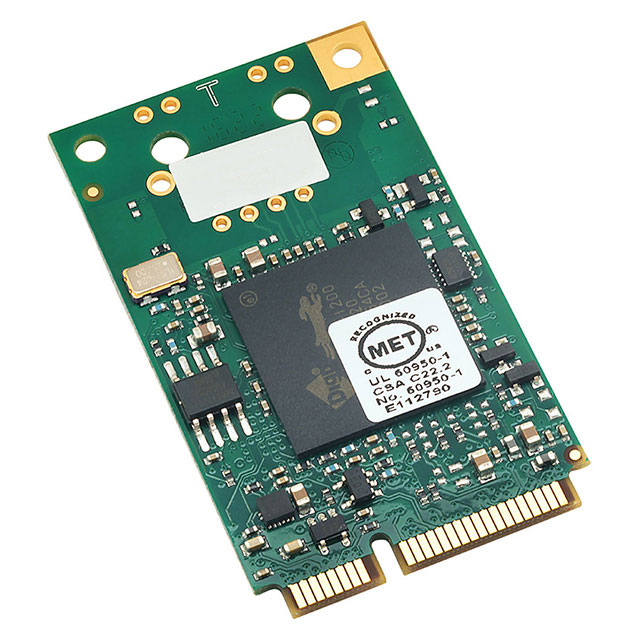

The ultra-compact MiniCore RCM67xx is ideal for today’s Smart Energy initiatives as well as other applications that require a cost effective web-enabled device server.
The RCM67xx series provides up to 6 serial ports, configurable I/O and control features such as PWM. Furthermore, the RCM 67xx series offers a much greater feature set than comparable device servers at a lower cost. The programming environment, Dynamic C, is an ANSI C compatible development environment that provides a royalty free TCP/IP stack and WiFi support.
Various protocols such as ZigBee, Modbus and BACnet are also supported to help reduce development costs and time-to-market. In addition to processor and protocol support, Dynamic C supports the iDigi® platform which provides remote firmware updates and data storage for greater device control and monitoring.
• Rabbit 6000 microprocessor running at up to 200MHz
• 1MB of internal SRAM for program/data storage
• Up to 4MB of serial Flash memory for data logging or web page storage
• 32KB battery-backable SRAM
• 10/100 Ethernet LAN supported
• Pin-compatible with MiniCore IEEE 802.11b/g wireless modules
• Flexible Interface Module (FIM) provides protocol support for CAN bus or SD/SDIO
• 52-pin Mini PCIe edge connector
• Power supply: +3.3Vdc
• Operating temperature range: -40 to +85°C
• Dimensions: 30 x 51mm
• iDigi platform provides cost-effective cloud computing for remote device management
