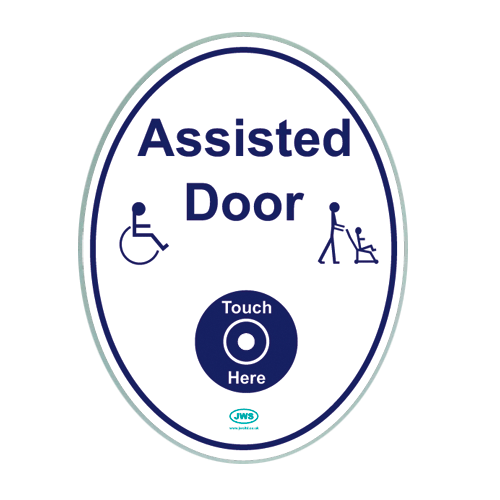

JWS Wireless (868MHz) Oval Touch Sensor for post mounting . Ideal for manually impulsing (triggering) door openers, activating access control, door entry and other switching applications. Signage: 'Assisted Door' with wheelchair & pram logos
Unlike push pads no physical pressure is required to operate making them ideal for users with physical disabilities. Its signage aids users with visual impairments giving it a higher LRV value than its counterparts (e.g. a push pad).
Its good for over 120,000 operations on one set of batteries and being wireless it can be installed and working in minutes. Simply learn the unique signal from the wireless Touch Sensor on the Receiver (sold separately) & you're ready to go!
Oval Touch Sensors
< Click me to view (PDF)Technical Specification
Up to seven wireless Touch Sensors can be used per receiver
Operating Voltage: 3v DC (2 x Powerone AA batteries included)
(Specified batteries must be used to achieve quoted life expectancy)
Battery Life Expectancy: Up to 120,000 operations (has no LED)
Operating Frequency: 868MHz (Secure Encrypted Wireless)
Dimensions: (mm): 160mm(w) x 37mm(d) x 210mm(h).
Housing Material: ABS
Signage Plate: 5mm Touch acrylic
Signage Makeup: Back printed long life vinyl
Signage Inks: Long life Roland Eco-Sol UV resistant
IP Rating: IP54
*Does not include mounting Post*
