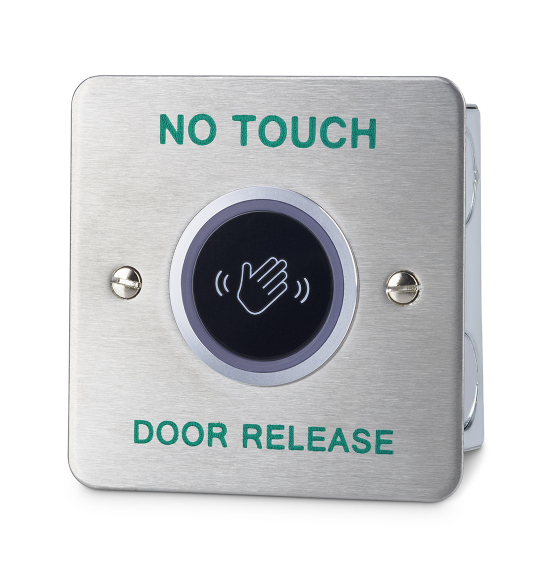

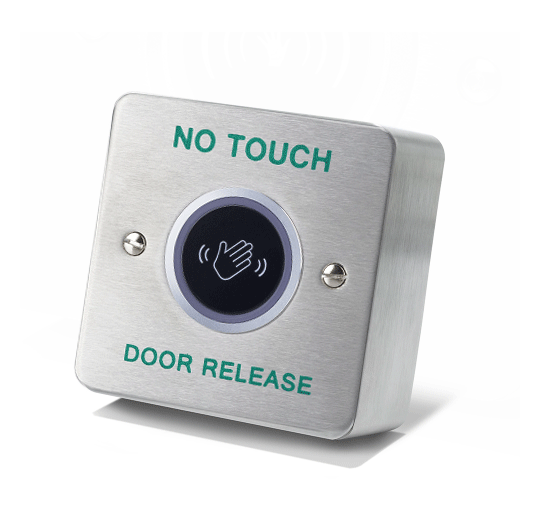

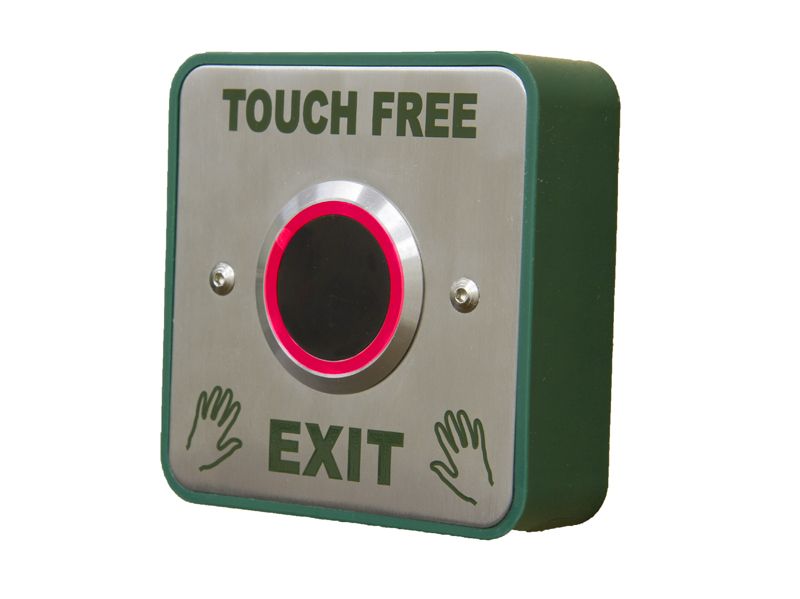

EBNT/TF1, NT200 (Flush Mount) & NT200S (Surface Mount)
Hands Free Touchless Infra Red Switches
Includes range adjustment and integral timer
Ranges: 5 , 7.5 and 15 cm, Timer: 0.5, 5, 10 and 20 seconds.
12 or 24V DC operation, Stainless Steel plate and Sensor (illuminated) surface mounted, includes back box with security screws.
Please note the NT200 is for flush mounting, if surface mounting a separate back box is required.

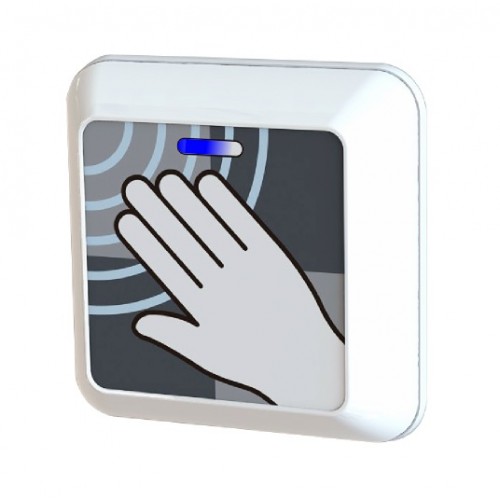

Greater than 1m operations.ClearWave
Hygienic, touchless, automatic door activation switch.
Detection range from 50-400 mm - for true hands free activation 12 to 30V DC, 12 to 24V AC with IP55 Rating,
Sensor Dimensions: 86mm x 86mm x 20mm
Operating Range: 20°C to +60°C 3 different faceplate included
Microwave technology Non-Touch microwave technology door activation switch designed for installations where hygiene is of paramount importance such as white room, food processing and chemical industry applications
Versatile Three faceplate stickers included to suit a variety of installation environments
Water resistant foam gasket protects the switch from water damage
Sleek Design Extremely small, light and attractive
Ease of Installation
No requirement for back box, completely flush mounted for zero wall damageJ-Wave

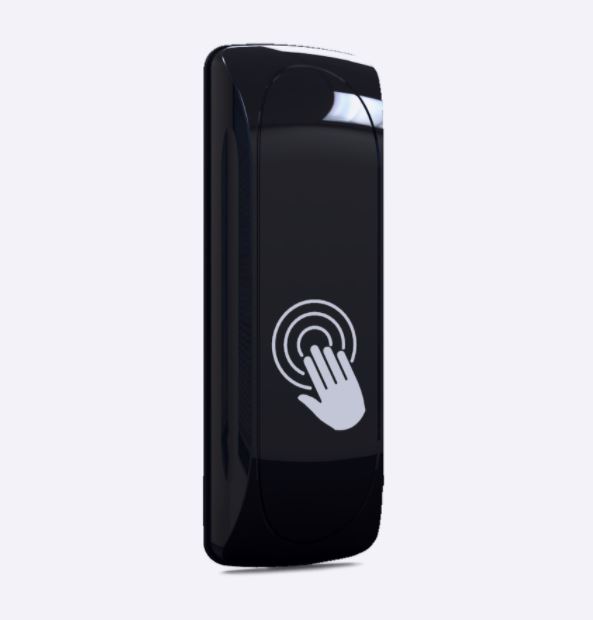

Narrow profile, hygienic, non-touch automatic door activation switch.
Detection range from 10-30 cm with an Illuminated faceplate.
Detection Method -Active Infrared Detection Detection
Sensor Dimensions -40mm ˣ 117mm ˣ 19.5mm (W ˣ L ˣ H) IP Rating IP54
Power Supply - DC12-30V, AC12-24V
Power Consumption -40mA (DC24V)
Operating Temperature -20℃ - +50℃ / 0~90% Weight 50g
