Automatic Door Safety Sensor for Automatic Swing Doors

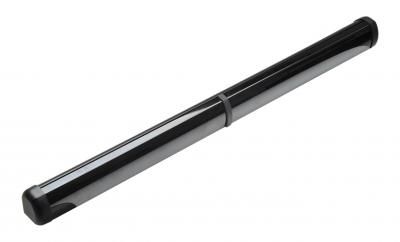

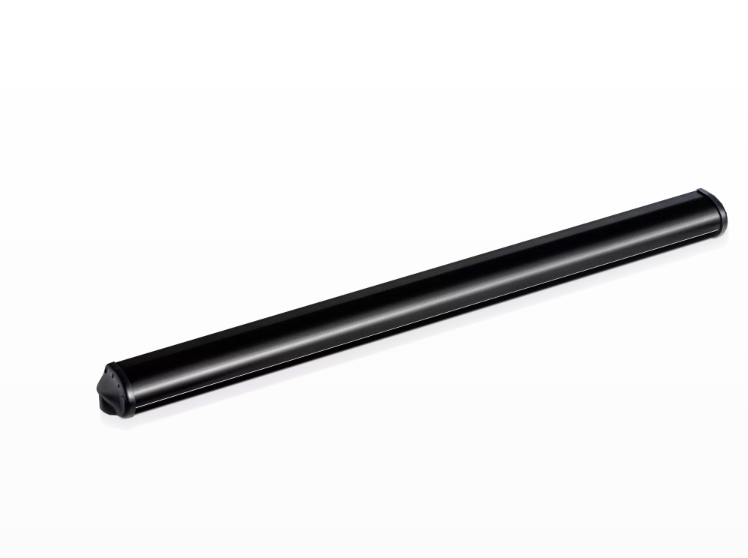

BEA 4SAFE On Door Safety Sensor

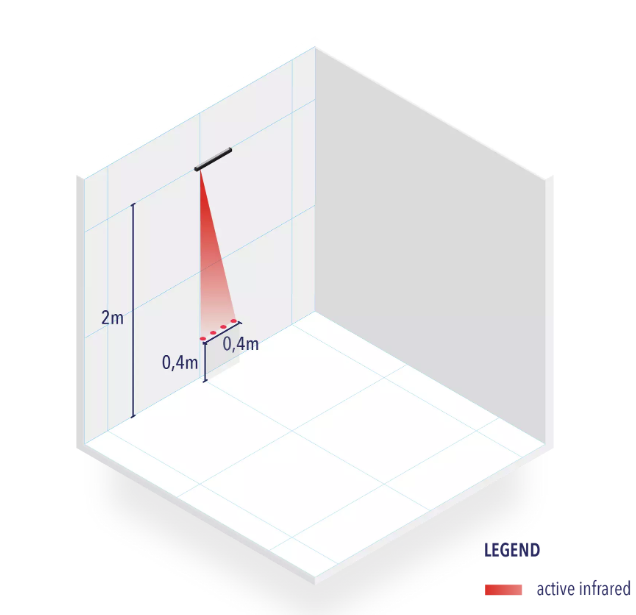

- 4 beams to give a field size of 400 x 70mm at approx 2m mounting height
- Mounting height from 1.1 to 3.5m
- One push sensor configuration for easy set up
- Additional sensors boards can be linked to extend the safety field
TECHNICAL SPECIFICATIONS
| Technology: | active infrared with background suppression |
| Detection field: | 400 mm (W) x 70 mm (D) (at 2 m mounting height; 4 spots active) |
| Mounting height: | 1.1 m to 3 m (according to floor reflectivity) |
| Reaction time: | 64 ms (typ) |
| Max. presence time: | infinite |
| Supply voltage: | 12 V - 24 V AC +/-10% ; 12 V - 30 V DC -5%/+10% (to be operated from SELV compatible power supplies only) |
| Max current consumption: | 110 mA @ 24 V AC/ 70 mA @ 24 V DC; 190 mA @ 12 V AC/ 145 mA @ 12 V DC (MASTER) 85 mA @ 24 V AC/ 60 mA @ 24 V DC; 180 mA @ 12 V AC/ 113 mA @ 12 V DC (other modules) |
| Output: | 2 relays (free of potential contact) |
| Max. contact voltage | 42 V AC/DC |
| Max. contact current | 1 A (resistive) |
| Max. switching power | 30 W (DC) / 60 VA (AC) |
| Input: | 1 optocoupler (free of potential contact) |
| Max. contact voltage: | 30 V |
| Voltage threshold: | high: >10 V DC; low: <1 V DC |
| Max. number of modules: | 4 (up to 6 if 24 V DC) |
| Reflectivity: | min. 5% at IR-wavelength of 850 nm |
| Degree of protection: | IP53 |
| Temperature range: | -25 °C to +55 °C; 0-95% relative humidity, non condensing |
| Expected lifetime: | 5 years |
| Norm conformity: | EMC 2004/108/EC; MD 2006/42/EC; EN 12978 EN ISO 13849-1:2008 Performance Level «c» CAT. 2 (under the condition that the door control system monitors the sensor at least once per door cycle) |
