Automatic Door 'Assisted Door' Slimline Touch Sensor (Wireless)

Automatic Door 'Assisted Door' Slimline Touch Sensor (Wireless)
  Zoom

868 MHz Wireless Touch Sensitive switch, a vandal resistant Push Pad alternative

Part Number:  TXARCASS
£72.00 ex 20% VAT (£86.40 inc. VAT)
143 in stock, immediate despatch

143 in stock, immediate despatch

-
+
Optional Extras:
Automatic Door Wireless Touch Sensor ReceiverAutomatic Door Wireless Touch Sensor Receiver

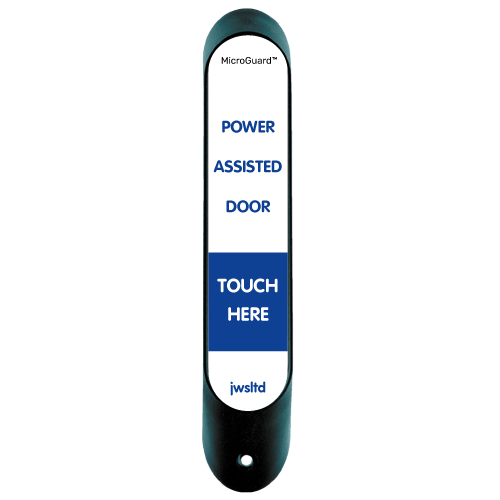

JWS Wireless 868 MHz Touch Sensor in architrave / slimline housing. Ideal for manually impulsing (triggering) door openers, activating access control, door entry and other switching applications. Signage: 'Assisted Door' with wheelchair & pram logos.

Suitable for internal & external installation (gasket & metal backplate included) and those subject to abuse. Its slim profile allows fitting on door jambs & architraves.

Unlike push pads no physical pressure is required to operate making them ideal for users with physical disabilities. Its signage aids users with visual impairments giving it a higher LRV value than its counterparts (e.g. a push pad).

Its good for over 120,000 operations on one set of batteries and being wireless it can be installed and working in minutes. Simply learn the unique signal from the wireless Touch Sensor on the Receiver (sold separately) & you're ready to go!

Architrave/Slimline Touch Sensors

Instructions PDF< Click me to view (PDF)


Technical Specification
Up to seven wireless Touch Sensors can be used per receiver
Operating Voltage: 3v DC (2 x Powerone AA batteries included)
(Specified batteries must be used to achieve quoted life expectancy)
Battery Life Expectancy: Up to 120,000 operations (has no LED)
Operating Frequency: 868MHz (Secure Encrypted Wireless)

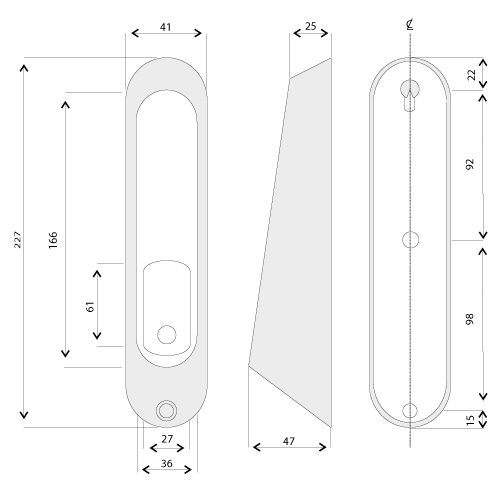

Dimensions: (mm): 225 (h) x 40 (w) x 49 (d)
Housing Material: Nylon (glass filled)
Housing Backplate: 2mm steel ( anodised )
Signage Plate: Touch acrylic
Signage Makeup: Back printed long life vinyl
Signage Inks: Long life Roland Eco-Sol UV resistant
IP Rating: IP54

For Help, Call 01761 414 700

Need advice on which product to purchase? No problem. Call our friendly sales and support team on 01761 414 700 or send us an email. We're more than happy to discuss your requirements.
