Access Control Kit K2: Keypad, Magnetic Lock, Exit Switch, PSU, Keyswitch, Breakglass

Access Control Kit K2: Keypad, Magnetic Lock, Exit Switch, PSU, Keyswitch, Breakglass
  Zoom
 Access Control Kit K2: Keypad, Magnetic Lock, Exit Switch, PSU, Keyswitch, BreakglassAccess Control Kit K2: Keypad, Magnetic Lock, Exit Switch, PSU, Keyswitch, Breakglass

ACT5 Keypad Access control system

Part Number:  KEYPADKIT2
£138.00 ex 20% VAT (£165.60 inc. VAT)
46 in stock, immediate despatch

46 in stock, immediate despatch

Same Day Despatch on working days.

-
+
Optional Extras:
Yuasa NP7-12 12V 7Ah Sealed Lead Acid Rechargeable BatteryYuasa NP7-12 12V 7Ah Sealed Lead Acid Rechargeable Battery

Keypad Access Control System based around the ACT5e / ACT5 keypad

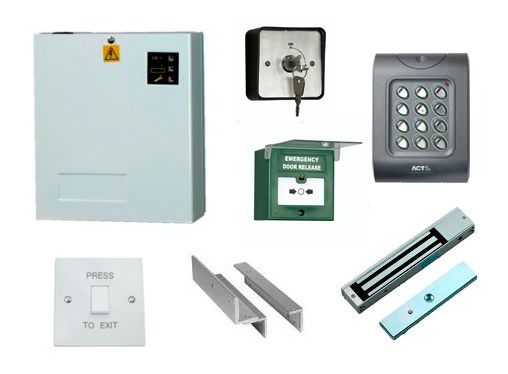

Included:
ACT 5 Keypad ( for internal or external use)
Boxed 12v DC Power Supply Unit
Magnetic Lock
Magnetic Lock Z & L Brackets
Press to Exit Switch
Override key switch with back box
Reset able Break glass with sounder and tamper cover



Technical Specification
Model: ACT5e
10 User codes
Programming Code
Push to release button input
Tri-colour LED and Buzzer indicators
Door relay timer (5 to 255 seconds)
Incorrect code lockout (20 seconds)
ACT5 Keypads have fully protected / potted electronics

Operating Voltage: 12/24 Volts AC/DC
Current Consumption: 30/120 mA
Weight: 260 grams
Operating Temperature: -10 to +50 C
Dimensions (HxWxD): 110 x 100 x 35mm
Mounting: Surface or Flush
Installation: Indoor or Outdoor (IP65)


How do I install the Act 5 keypad?

Instructions PDF< Click me to get the manual (PDF)

For Help, Call 01761 414 700

Need advice on which product to purchase? No problem. Call our friendly sales and support team on 01761 414 700 or send us an email. We're more than happy to discuss your requirements.
