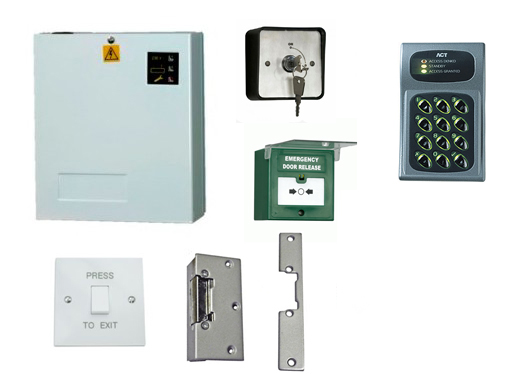

Access Control Kit K3LR: Keypad, Lock Release, Exit Switch, PSU, Keyswitch, Breakglass

Keypad Access Control System based around the ACT10 keypad

Included:
ACT 10 Keypad ( for internal or external use)
Boxed 12v DC Power Supply Unit
Adjustable Fail Secure Lock Release
Press to Exit Switch
Override key switch with back box
Reset able Break glass with sounder and tamper cover



Technical Specification
10 User codes
2 Output relays
2 doors, 2 user groups
Interlock, fire alarm input, door monitoring
Surface or Flush mount options
Indoor or outdoor (IP54)
Zinc diecast housing, stainless steel keys
Front and back tamper
Backlit keypad
The ACT 10 requires an operating voltage of 12 to 24 volts AC or DC. For full functionality use 12 volts DC supply.
2 x 5 amp relay outputs
Operating Temperature: -10 to +50 C
There are flush mounting and weather shield accessories available for this product



Operating Voltage: 12/24 Volts AC/DC
Current Consumption: 40/120 mA
Weight: 700 grams
Operating Temperature: -10 to +50 C
Dimensions (HxWxD): 138 x 87 x 37 mm
Mounting: Surface or Flush
Installation: Indoor or Outdoor

How do I install the Act 10 keypad?

< Click me to get the manual (PDF)
