Access Control Kit K2LR: Keypad, Lock Release, Exit Switch, PSU, Keyswitch, Breakglass

Keypad Access Control System based around the ACT5e / ACT5 keypad

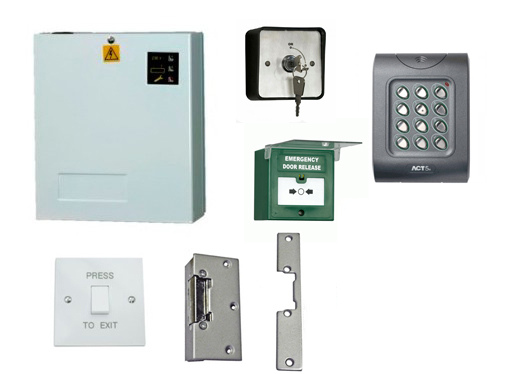

Included:
ACT 5 Keypad ( for internal or external use)
Boxed 12v DC Power Supply Unit (1A)
Adjustable Fail Secure Lock Release
Press to Exit Switch
Override key switch with back box
Reset able Break glass with sounder and tamper cover



Technical Specification
Model: ACT5e
10 User codes
Programming Code
Push to release button input
Tri-colour LED and Buzzer indicators
Door relay timer (5 to 255 seconds)
Incorrect code lockout (20 seconds)
ACT5 Keypads have fully protected / potted electronics

Operating Voltage: 12/24 Volts AC/DC
Current Consumption: 30/120 mA
Weight: 260 grams
Operating Temperature: -10 to +50 C
Dimensions (HxWxD): 110 x 100 x 35mm
Mounting: Surface or Flush
Installation: Indoor or Outdoor (IP65)




How do I install the Act 5 keypad?

< Click me to get the manual (PDF)
