Toggle Relay Board

Toggle Relay Board
  Zoom
 Toggle Relay BoardToggle Relay Board

12 / 24 Volt DC Toggle PCB

Part Number:  LATCHPCB
£19.00 ex 20% VAT (£22.80 inc. VAT)


-
+
The toggle relay is a simple low-cost module ideal for use with radio controlled transmitter /receivers to operate gates, doors, barriers, CCTV cameras and alarm systems.

It has been designed for 12 or 24 Volt DC operation and has a double pole relay rated at 8 amps 240 V AC complete with LED indication.

Operation: The relay is activated by a trigger which can be a positive or negative voltage applied or removed from the ‘T’ terminal.

This gives a toggled on-off action.

IS TR HK00992

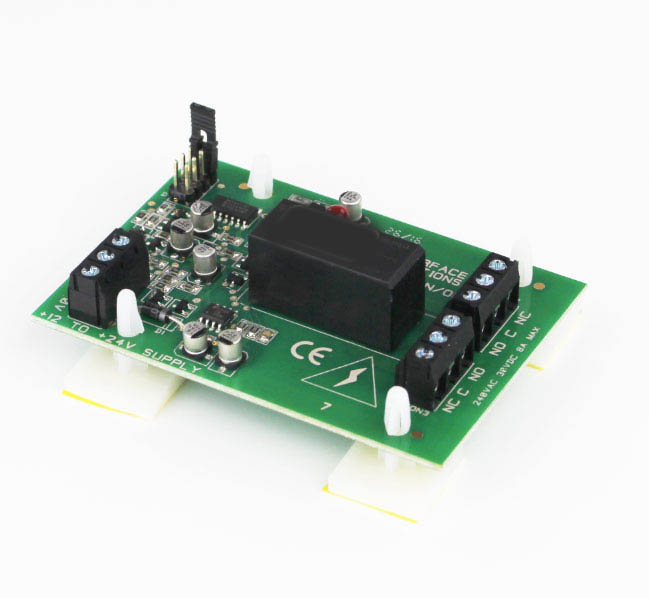

(mounting pillars shown are not included)

Link In Trigger Relay
A Applied Not latched
B Removed Not latched
C Removed Latched
D Applied Latched
