Wheelchair Access System by Proximity for Automatic Doors, Access Control & Disabled Access for up to 1,000 users. Hands-free / long range Proximity of up to 800mm*

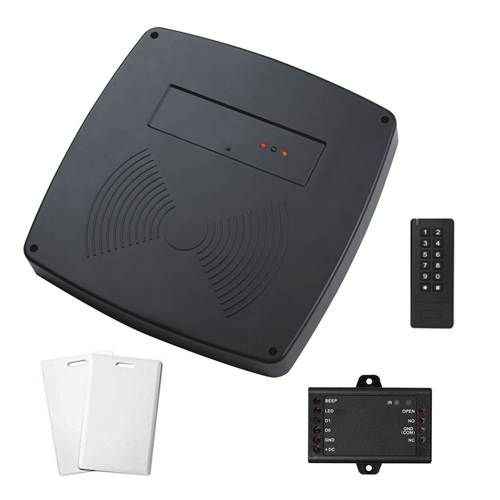

Kit includes Long Range Proximity Reader, Separate 12v DC Controller with Relay Output, Remote Control (for easy programming) and Two User Cards

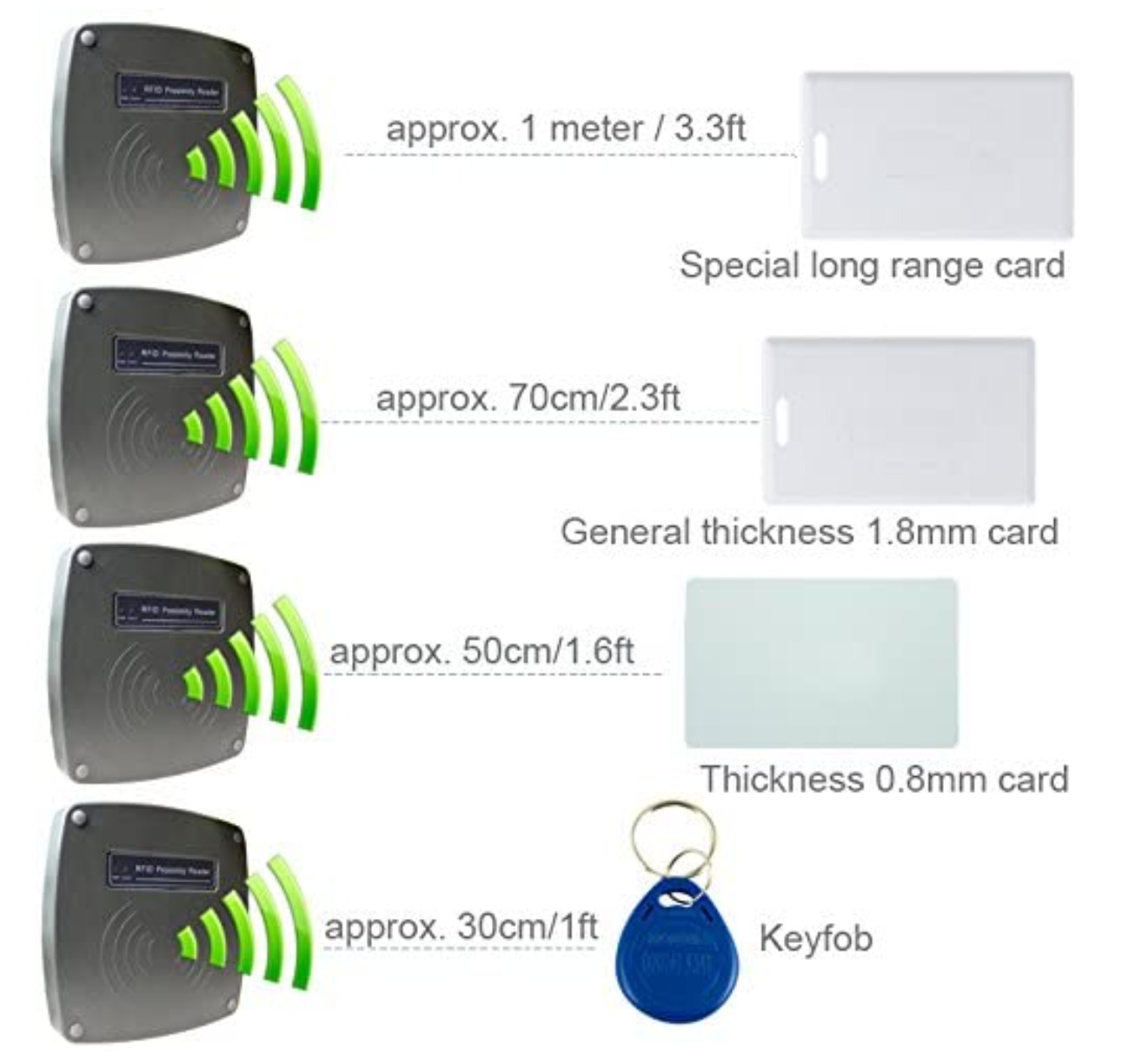

Please note the following to help optimise reading distance*
Do not mount on or near to metallic objects.
Cards and Reader must be in the same plane: i.e. flat upright card facing reader
Readers must not be within 5m of each other ( you may experiment on site to optimise proximity)
*Read range is optimised using JWS Long Range Hard Shell Cards only, fobs and other cards will be considerably less.
Need advice? Call us on 01761 414700
Technical Specification· Reading Range: Up to 800mm*
· Voltage: DC12v
· Current: ≤100mA
· Working Temperature: -10-70 degree
· Color: Dark Grey
· Dimensions: 260x260x35mm
· Working Humidity: 10%-90%
· IP 65 - Suitable for outside use
WASP Manual Part 1
WASP Manual Part 2
