Delay Timer Board

Delay Timer Board
  Zoom
Delay Timer BoardDelay Timer BoardDelay Timer Board

12-24v DC 1 Timed & 1 Delay Relay Timer PCB

Part Number:  DTB
£55.00 ex 20% VAT (£66.00 inc. VAT)


Same Day Despatch on working days.
-
+
Programmable Time delay relay board with Two relay outputs.

Dual channel digitally programmable timer.
Relay 1 contacts operate immediately.
Relay 2 contacts operate after a programmable delay.
Programmable time for contacts closed on both channels.
Normally open and normally closed relay outputs can switch 3 Amps.
Can be configured for single-shot or reset triggering.

Specification:
VIN SUPPLY CURRENT: 7.5V to 28V DC
O/P CONTACTS: 6 mA STANDBY / 150 mA OPERATING / 3A @30V DC / 1A@125V AC
OPERATING TEMP: -10 to +55 C
TIMING RESOLUTION: 200mS






For Help, Call 01761 414 700

Need advice on which product to purchase? No problem. Call our friendly sales and support team on 01761 414 700 or send us an email. We're more than happy to discuss your requirements.

Related Products
12V dc Timer relay  0-30 secs

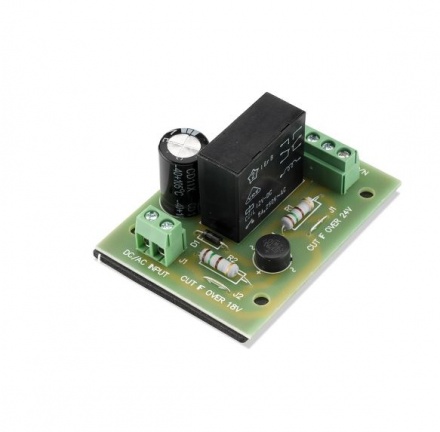

12V dc Timer relay 0-30 secs

12~28V AC/DC Single pole change-over Relay

£7.00
224 in stock, immediate despatch  224 in stock, immediate despatch

Digital 7-day timer 12v DC

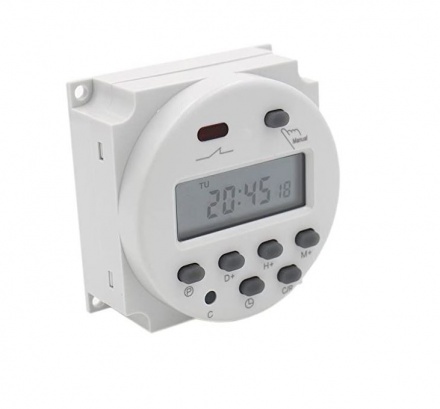

Digital 7-day timer 12v DC
