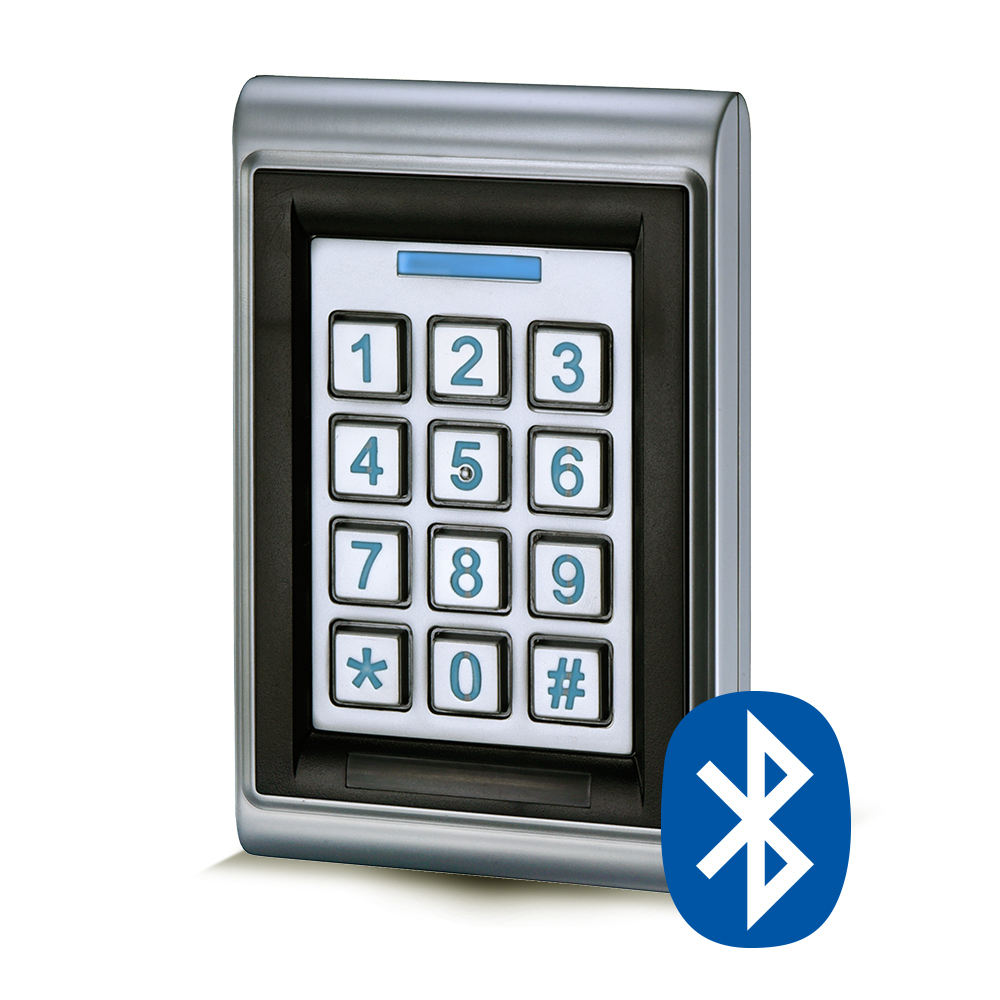

DG800+ is a low cost stand-alone programmable Proximity and PIN keypad Access Control system and can be programmed by Bluetooth via a free App on your smartphone
Weather resistant IP65 Die-cast Aluminium vandal resistant backlit keypad.
Operating voltage 12~24Vac/Vdc
1 Administrator and 200 Users
200 Proximity Cards / Key fobs
Access Modes：Use Bluetooth smartphone,Card / Key fob or enter passcode to access
Built-in Tamper alarm and Buzzer (85dB)
User Management：Add / Delete / View user data
Grant user access for specific dates or time periods
Change user passcode
Audit Trail logs for last 1000 events
Alarm output to notify that Tamper alarm has been triggered
Overhead LEDs and Backlit keys for easy use in the dark
Wrong code lockout: If an incorrect passcode is entered 3 times in a row, the keypad will lock down for 60 seconds
Specification:Current draw:
Pull in: 100mA/12Vdc;
Holding: 70mA/12Vdc.
Input: Request-to-Exit, timeout reed switch contact.
Output: Dual relays, N.O./N.C/Com.
Relays rating: 2A MAX@30Vdc., 0.6A@120Vac.
Programmable 4 digit code.
RF frequency: 125 KHz.
Relay strike time: 01~99 seconds or toggle mode (00).
Read range: 5cm. (In noise -free environment).
Dimensions: 120 × 76 × 21 mm
