Access Control Kit: Proximity Kit 5

DG800-PLUS PIN & Proximity Access Control System with Bluetooth

Comes with a free Bluetooth App for your Apple iPhone and Android Smartphone

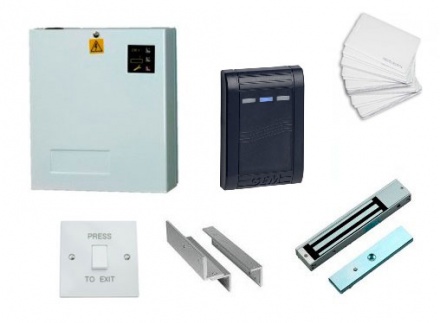

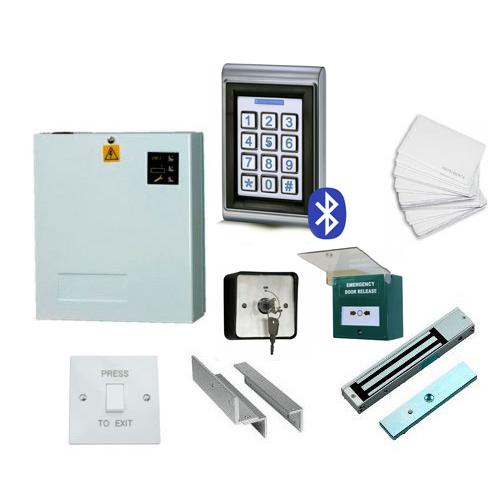

Included in the kit:
DG800-PLUS PIN & Proximity reader / controller ( for internal or external use)
Up to 200 Users (Cards or Fobs)
1 Master Programming Fob

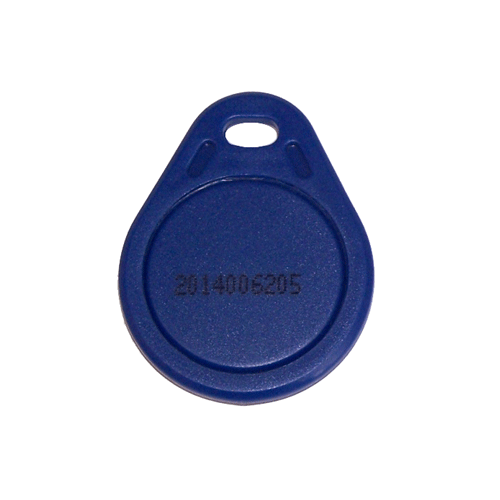

10 User cards ( fobs are available request for additional £1.35 ea)
Boxed 12v DC Power Supply Unit
Magnetic Lock
Magnetic Lock Z & L Brackets
Press to Exit Switch
Override key switch with back box
Reset able Break glass with sounder and tamper cover

Features

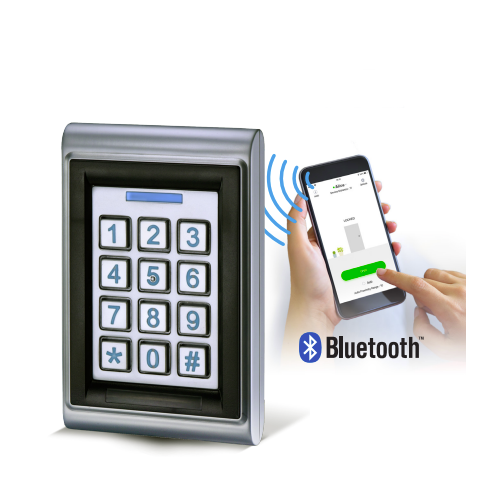

DG800+ is a low cost stand-alone programmable Proximity and PIN keypad Access Control system and can be programmed by Bluetooth via a free App on your smartphone
Weather resistant IP65 Die-cast Aluminium vandal resistant backlit keypad.
Operating voltage 12~24Vac/Vdc 1 Administrator and 200 Users 200 Proximity Cards / Key fobs Access Modes：
Use Bluetooth smartphone,Card / Key fob or enter passcode to access
Built-in Tamper alarm and Buzzer (85dB)
User Management：Add / Delete / View user data
Grant user access for specific dates or time periods
Change user passcode
Audit Trail logs for last 1000 events
Alarm output to notify that Tamper alarm has been triggered
Overhead LEDs and Backlit keys for easy use in the dark
Wrong code lockout: If an incorrect passcode is entered 3 times in a row, the keypad will lock down for 60 seconds

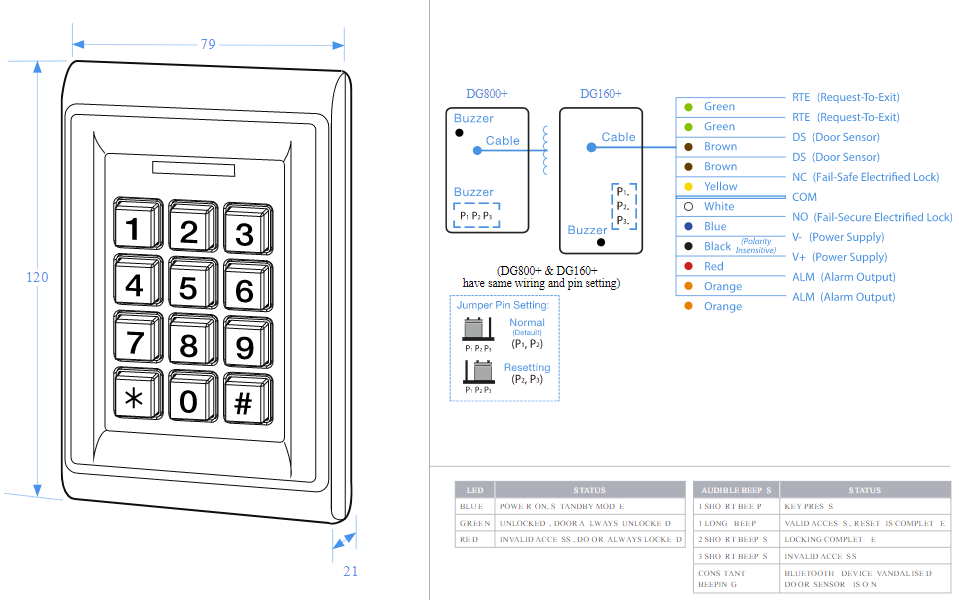

120 × 76 × 21 mm
Current draw: Pull in: 100mA/12Vdc;
Holding: 70mA/12Vdc. Pull in: 50mA/24Vdc;
Holding: 35mA/24Vdc.
Input: Request-to-Exit, timeout reed switch contact.
Output: Dual relays, N.O./N.C/Com.
Relays rating: 2A MAX@30Vdc., 0.6A@120Vac.
Programmable 4 digit code.
RF frequency: EM 125 KHz.
Relay strike time: 01~99 seconds or toggle mode (00).
Read range: 5cm. (In noise -free environment).
