TLS Secure access control system (locking and engaging) toilet area(s).
The Toilet door is always locked to prevent entry, a valid card or fob will allow access.
How it works:
Entry - Access can be gained into the toilet by presenting a Proximity Fob to the Proximity Reader / Indicator.
The door now needs to be in a closed position before progressing to the next stage.
Locking - Use internal RED Touch Sensor which will activate the door lock(s). The internal Touch Sensor and external Proximity Reader / Indicator will flash, showing the user that the door is locked and to people outside, that the toilet is engaged.
Unlocking - Use the internal GREEN Touch Sensor again and the lock(s) is released, allowing the door to be opened manually.

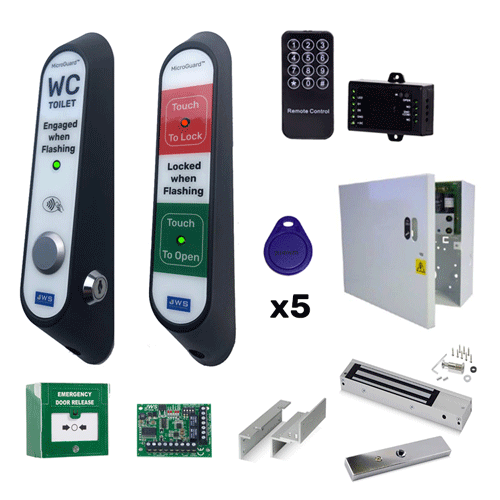

Whats in the kit?
TLS Secure PCB
Separate Proximity Control Unit and Handheld Remote
12v 1A PSU (powers TLS and lock, houses both above items)
5 x User Proximity Fobs

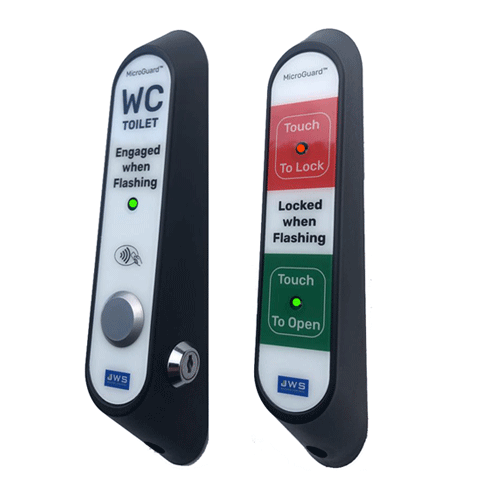

Open (External) Proximity Reader / Indicator with Integral Keyswitch for emergency override
Lock (Internal) Touch Sensor ( which locks and unlocks the door)
Resettable Breakglass with Cover & 2 reset keys
Slimline Door Status Maglock
Z and L Bracket Kit
User labels
The Proximity Reader / Indicator and Touch Sensor is coated with MicroGuard™ Anti-Microbial Coating.
Technical SpecificationBreak glass & key-switch input to provide emergency override*
Door contact input to prevent false / accidental locking*
Can be used in toilets with one or multiple doors ( specify on order )
Activation LED on PCB
Operating voltage 12v DC ( 24v DC to order )
High visibility flashing LEDs
12v DC Maglock output
Simply to install, operate and maintain
* A Breakglass and /or key-switch (both included) must be incorporated into the system to provide a means of system override. A door contact must also be used to prevent accidental locking (also included).
TLS Data Sheet
